Rear Seatbelt Buckle LH - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: The striker should be in its lowest position for the latch to engage.

Fold the LH rear seat backrest down.
1. Raise the seat cushion.
2. Release the seat latch.
3. Fold the seat backrest down.
Courtesy of FORD MOTOR COMPANY
If equipped. Remove the subwoofer.
1. Disconnect the electrical connector.
2. Remove the bolt.
  Torque: 62 lb.in (7 Nm)
3. Remove the nuts.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

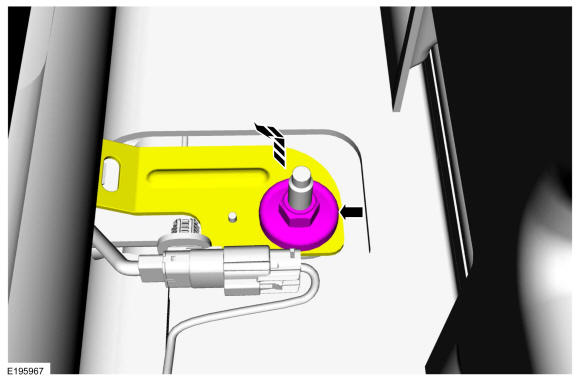

Remove the nut and position the rear center seatbelt anchor aside.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the seatbelt buckle electrical connector.

Courtesy of FORD MOTOR COMPANY

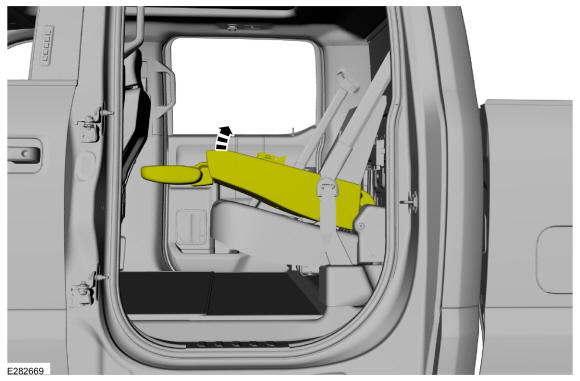

Lift the rear seat backrest up.

Courtesy of FORD MOTOR COMPANY

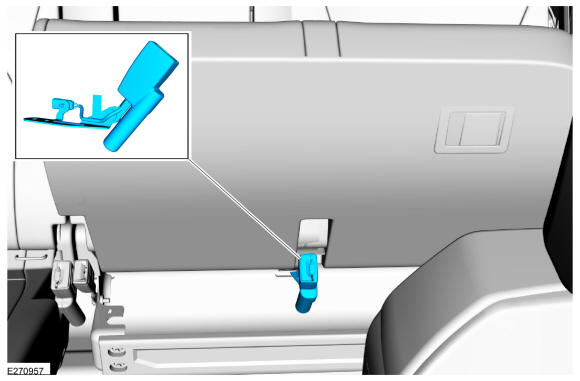

Remove the rear seatbelt buckle LH.

Courtesy of FORD MOTOR COMPANY
