Rear Outer Seatbelt Lower Retractor - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

NOTE: Follow the unique instruction or graphic for this step in installation.

Open the seatbelt tongue cover.
1. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
2. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
3. Push the seatbelt tongue lower cover forward to disengage and open the cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instruction or graphic for this step in installation.

Disassemble the lap belt from the seatbelt tongue.
1. Push down on the lap belt spring clip.
2. Remove the pin.
3. Pull the lap belt through the seatbelt tongue cover.
Courtesy of FORD MOTOR COMPANY

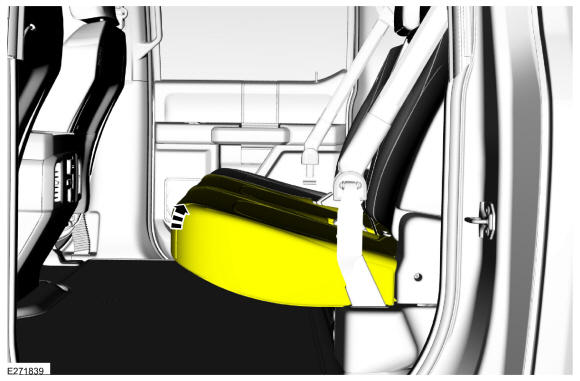

Lift the rear seat cushion up.

Courtesy of FORD MOTOR COMPANY

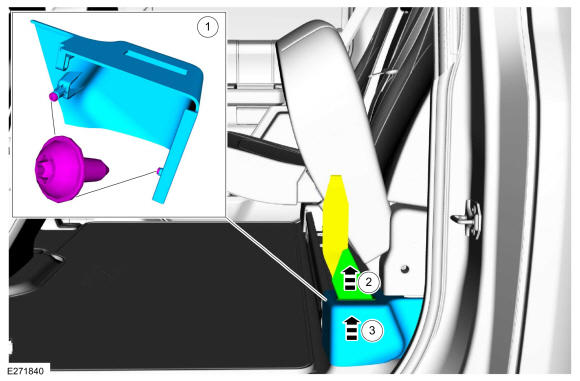

Remove the lower seatbelt retractor cover.
1. Remove the screws.
2. Remove the dust boot.
3. Remove the cover while feeding the seatbelt through the opening.
Courtesy of FORD MOTOR COMPANY

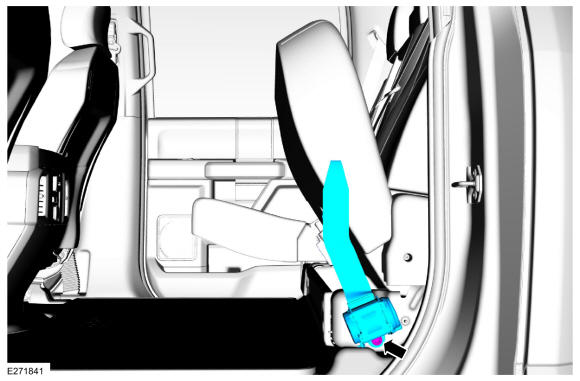

Remove the bolt and the rear outer seatbelt lower retractor.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
