Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SuperCrew shown, all others similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the load space trim panel. Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .
If equipped. Remove the subwoofer speaker. Refer to: Subwoofer Speaker .
Position the rear center seatbelt/buckle anchor aside.
1. Remove the nut.
  Torque: 59 lb.ft (80 Nm)
2. Remove the pin-type retainer.
3. Position the rear center seatbelt/buckle anchor aside.
Courtesy of FORD MOTOR COMPANY

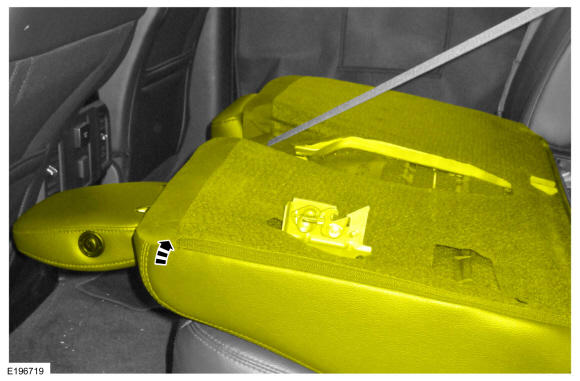

Lift the rear seat backrest up.

Courtesy of FORD MOTOR COMPANY

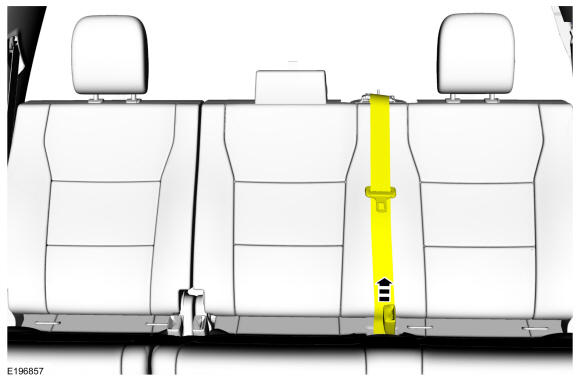

Pull the rear center seatbelt/buckle through the seat cushion.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position the seatbelt guide aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the seatbelt retractor.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
