Front Seatbelt Retractor and Pretensioner - SuperCab: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
LH shown, RH similar.
-
WARNING: Before beginning any service procedure, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCab .
- Release the retainers and position the seatbelt guide aside.
-
- Disconnect the front seatbelt retractor and pretensioner electrical connectors.
- Detach the wiring harness retainer.
- Remove the outer weather seal.

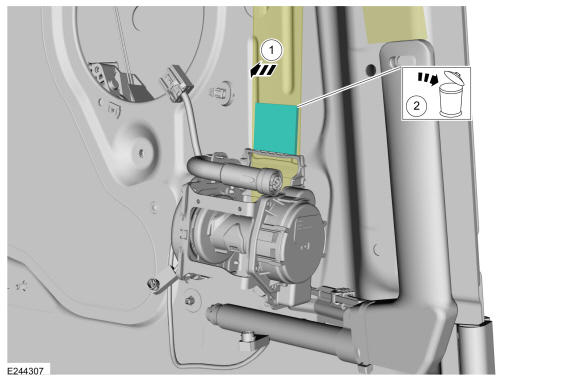

- Position the seatbelt aside.
- Remove the outer weather seal.

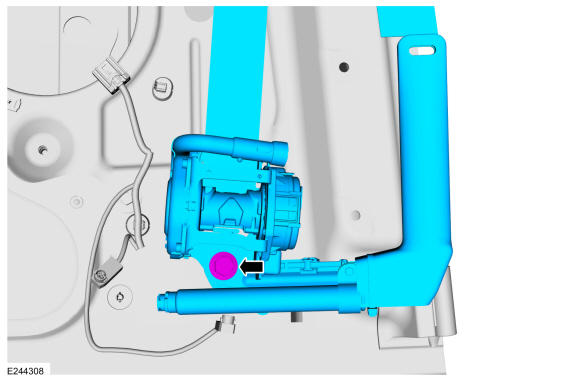

- Remove the bolt and the front seatbelt retractor and pretensioner.

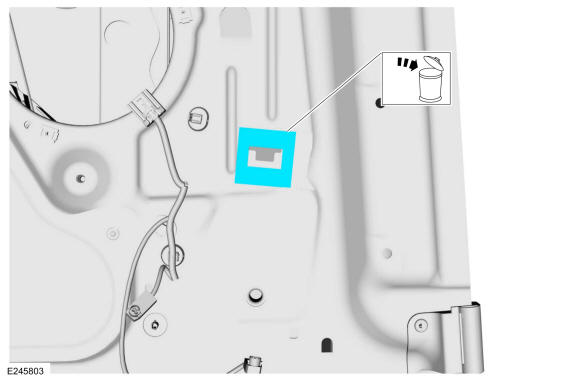

- Remove the inner weather seal.
- Clean the surface area of foreign materials.
