Front Seatbelt Retractor and Pretensioner - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the B-pillar lower trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .

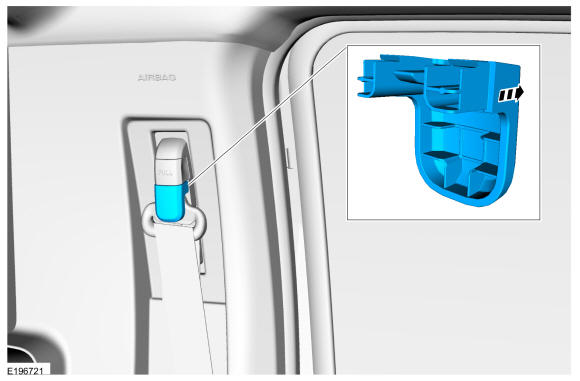

Remove the D-ring cover.

Courtesy of FORD MOTOR COMPANY

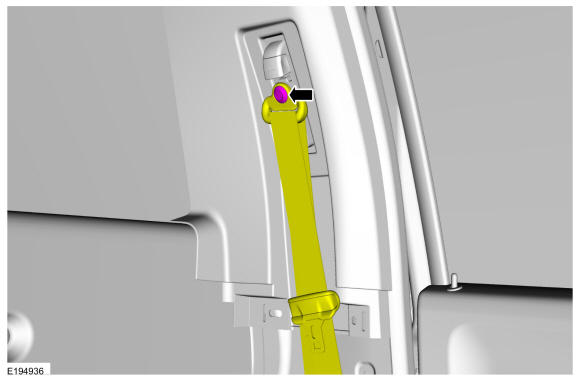

Remove the bolt and position the safety belt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

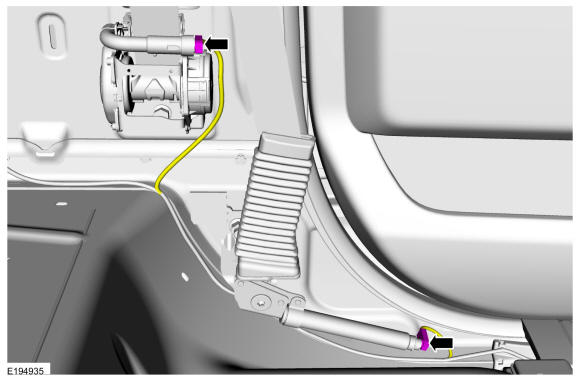

Disconnect the pretensioner electrical connectors and position aside.

Courtesy of FORD MOTOR COMPANY
Remove the weather seal and discard.

Courtesy of FORD MOTOR COMPANY

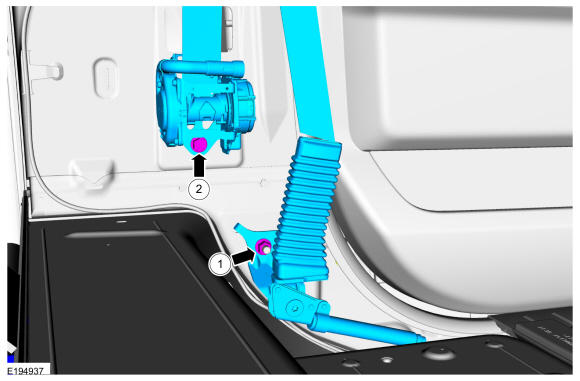

Remove the safety belt retractor and anchor pretensioner.
1. Remove the nut.
  Torque: 30 lb.ft (40 Nm)
2. Remove the bolt and the safety belt retractor and anchor pretensioner.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
