Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .

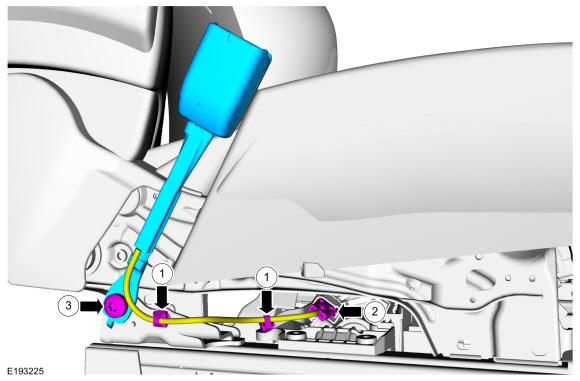

Remove the safety belt buckle.
1. Release the wire harness retainers.
2. Disconnect the electrical connector.
3. Remove the bolt and the safety belt buckle.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
