Front Center Seatbelt Retractor - Regular Cab: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

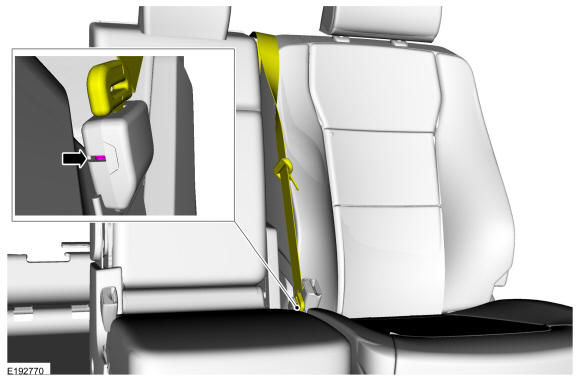

- Press the locking tab and disconnect the safety belt from the detachable safety belt anchor.
- Remove the load space trim panel. Refer to: Loadspace Trim Panel - Regular Cab .

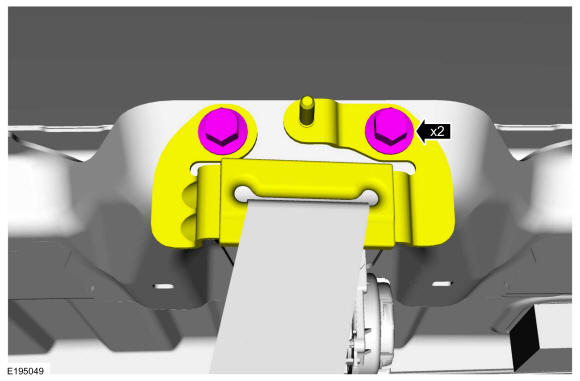

- Remove the bolts and position the safety belt guide aside.
Torque: 30 lb.ft (40 Nm)

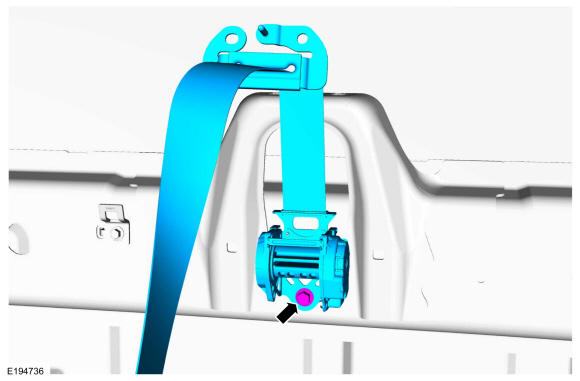

- Remove the bolt and the safety belt retractor.
Torque: 30 lb.ft (40 Nm)
