Front Center Seatbelt Buckle - SuperCab SuperCrew: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front center seat. Refer to: Front Center Seat .
- Raise the seat cushion.
- Remove the cup holder.
- Remove the screws and the seat storage tray.
- Lower the seat cushion.
- Release the seat latch and fold the seat backrest down.
- Remove the rear cup holder assembly.
- Remove the rear cup holder assembly retainers.
- Disconnect the auxiliary power point electrical connector.

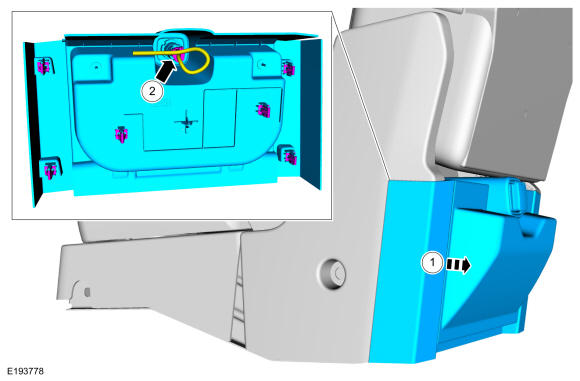

- Remove the screws, release the retaining clips and remove the LH side shield.
- Remove the bolt and the safety belt buckle.
Torque: 30 lb.ft (40 Nm)
