Front Center Seatbelt Buckle - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .
  2. Raise the seat cushion.

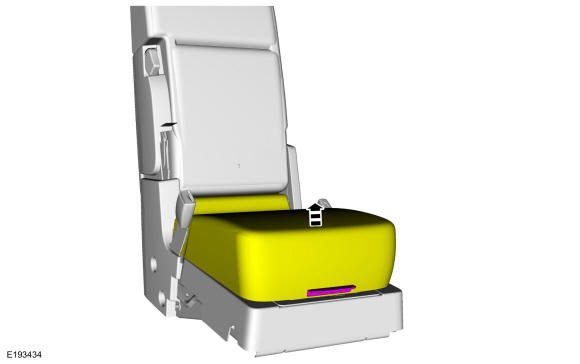

    GFD466577Courtesy of FORD MOTOR COMPANY
  3. Remove the cup holder.
    GFD466578Courtesy of FORD MOTOR COMPANY
  4. Remove the screws and the seat storage tray.
    GFD466579Courtesy of FORD MOTOR COMPANY
  5. Lower the seat cushion.

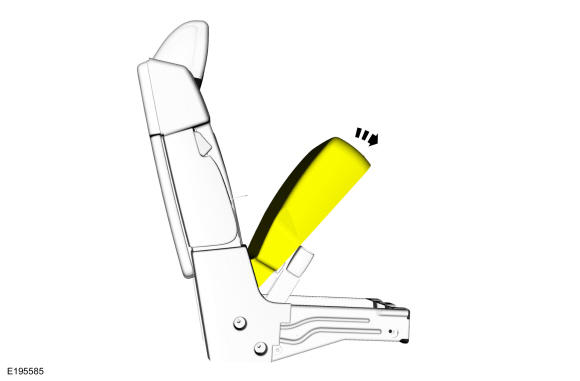

    GFD466580Courtesy of FORD MOTOR COMPANY
  6. Release the seat latch and fold the seat backrest down.

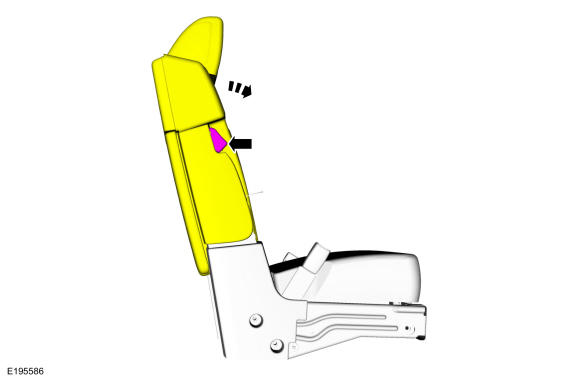

    GFD466581Courtesy of FORD MOTOR COMPANY

    RH buckle

  7. Remove the backrest latch cover.

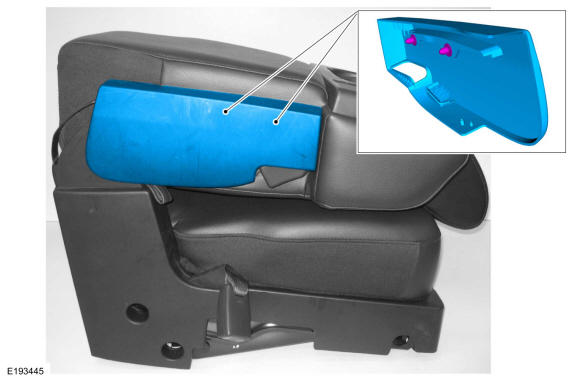

    GFD466582Courtesy of FORD MOTOR COMPANY
  8. Remove the screws, release the retaining clip and remove the RH side shield.
    GFD466583Courtesy of FORD MOTOR COMPANY
  9. Remove the bolt and the safety belt buckle.

    Torque: 30 lb.ft (40 Nm)

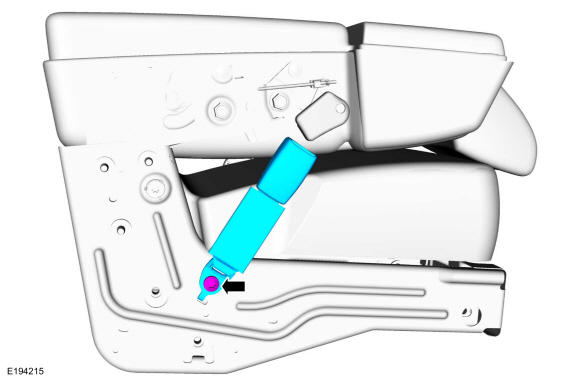

    GFD467100Courtesy of FORD MOTOR COMPANY

    LH detachable anchor

  10. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD466584Courtesy of FORD MOTOR COMPANY
  11. Remove the bolt and the detachable safety belt anchor.

    Torque: 30 lb.ft (40 Nm)

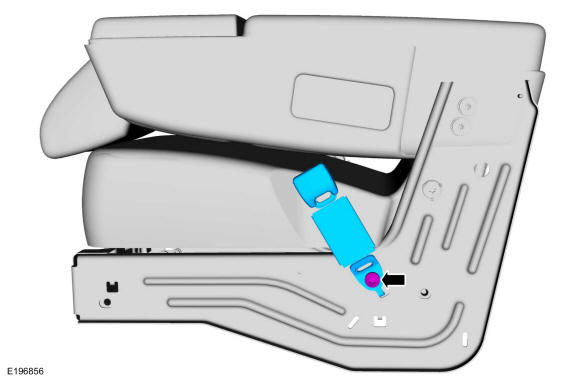

GFD467101Courtesy of FORD MOTOR COMPANY
