Child Safety Seat Tether Anchor - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

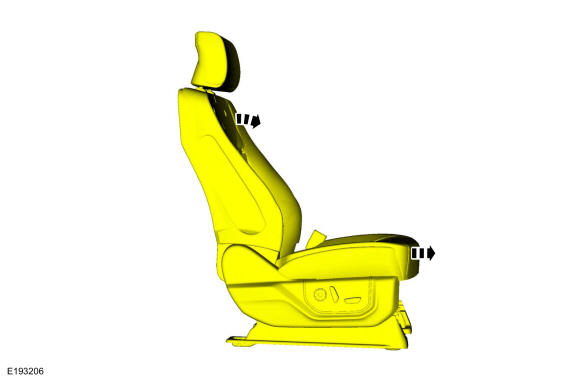

  1. Position the passenger seat.
    GFD467095Courtesy of FORD MOTOR COMPANY

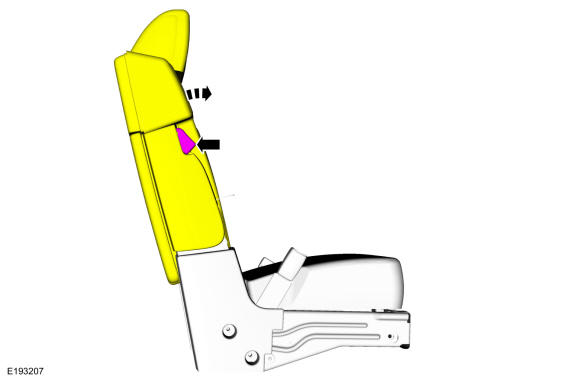

  2. If equipped, release the seat latch and fold the center seat backrest down.
    GFD467096Courtesy of FORD MOTOR COMPANY

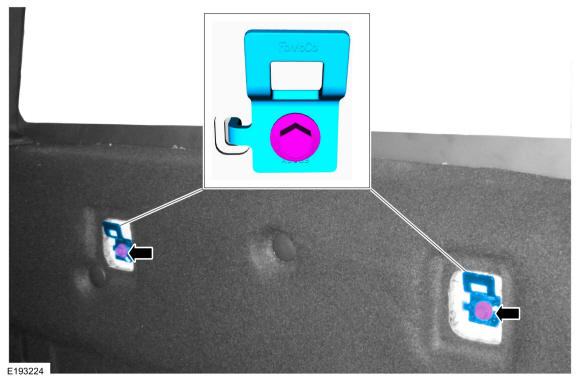

  3. Remove the bolt(s) and the child safety seat tether anchor(s).

    Torque: 18 lb.ft (25 Nm)

GFD467097Courtesy of FORD MOTOR COMPANY
