Seatbelt Twisted at the Seatbelt Guide
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Adjustment
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- If necessary, remove necessary trim panel(s).
-
NOTE: Typical D-ring shown, others similar.

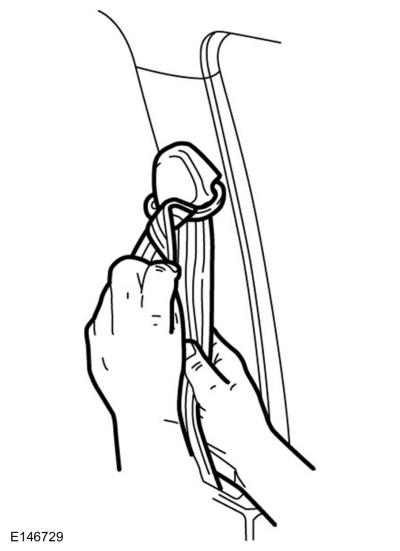

Grasp the safety belt webbing at the D-ring and fold the twisted portion of the safety belt webbing over itself.

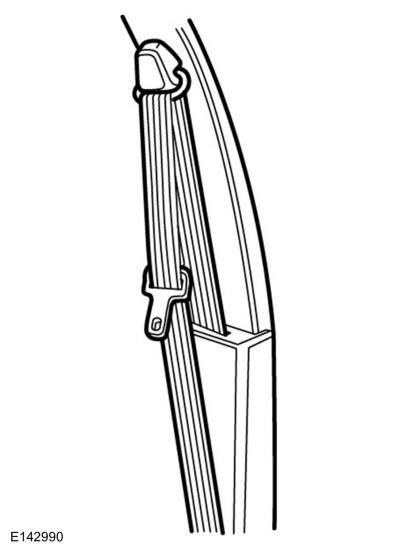

- Feed the folded portion of the safety belt webbing through the D-ring to remove the twist from the safety belt webbing.
