Vehicles with Rear Inflatable Seatbelts

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

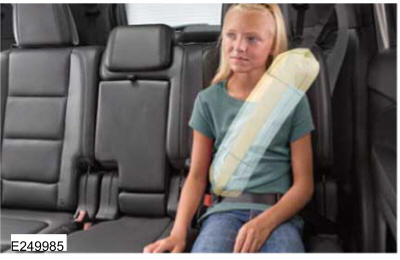

Deployed Inflatable Seatbelt

GFD467084Courtesy of FORD MOTOR COMPANY

On vehicles with rear inflatable seatbelts, each rear outboard seating position has a 3-point system which consists of a lower lap belt and retractor and an upper shoulder belt and retractor. The two are joined together at the seatbelt tongue and can be separated and serviced separately. The buckle tongue is unique to the inflatable seatbelt system and is part of the upper shoulder belt and retractor.
