Pickup Bed: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

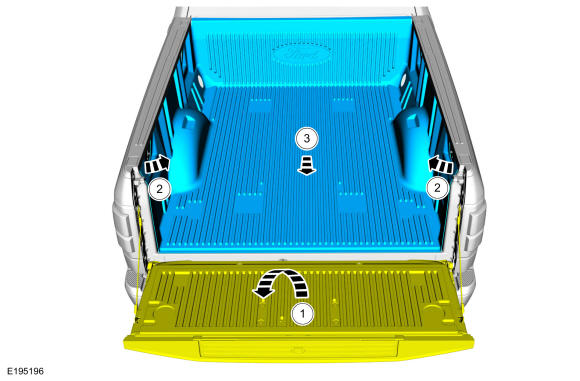

If equipped, remove the bed liner.
1. Lower the tailgate.
2. Pull the upper corners of the bed liner inward.
3. Remove the bed liner.
Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the rear bumper. Refer to: Rear Bumper .
Remove the fuel filler pipe. Refer to: Fuel Tank Filler Pipe (2.7L) . Refer to: Fuel Tank Filler Pipe (3.3L) . Refer to: Fuel Tank Filler Pipe (3.5L) . Refer to: Fuel Tank Filler Pipe (5.0L) . Refer to: Fuel Tank Filler Pipe (3.0L) .

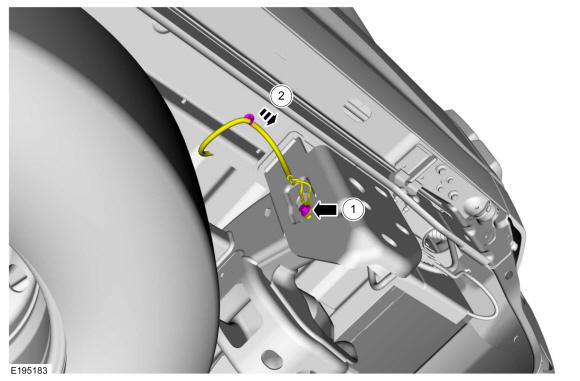

1. Remove the wiring harness ground screw.
  Torque: 177 lb.in (20 Nm)
2. Unclip the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

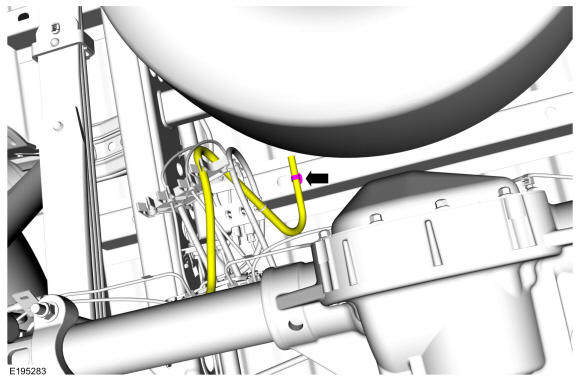

Unclip the axle vent tube clip from the pickup bed floor crossmember and position the tube to the side.

Courtesy of FORD MOTOR COMPANY

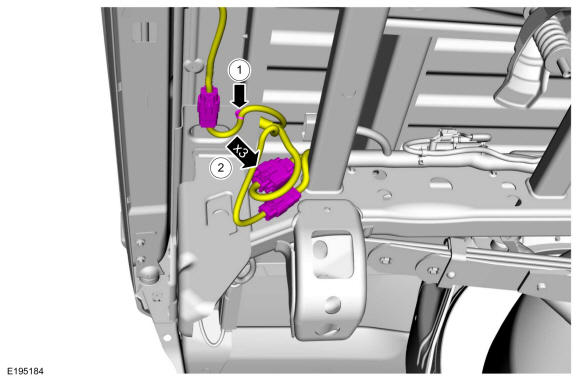

NOTE: Spare tire removed for clarity.
1. Unclip the wiring harness retainer.
2. Disconnect the wiring harness connectors.
Courtesy of FORD MOTOR COMPANY

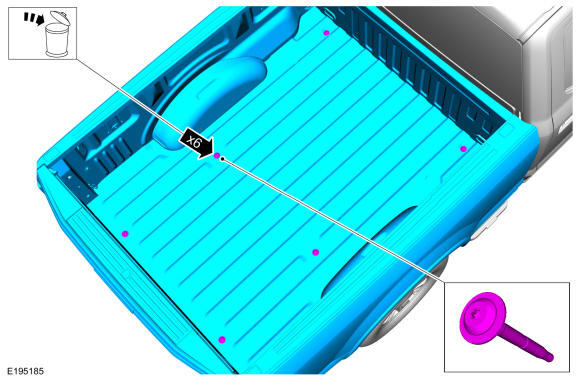

NOTE: 6.5-foot styleside pickup bed shown, all other styleside similar.

NOTE: All 8-foot pickup beds will have 8 bolts; all others will have 6 bolts.

NOTE: The pickup bed bolts are one-time-use only. Install new bolts whenever the bolts are removed.

Remove and discard the pickup bed bolts. Remove the pickup bed.

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
