Trough Assembly: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
-
NOTE: LH side shown, RH side similar.

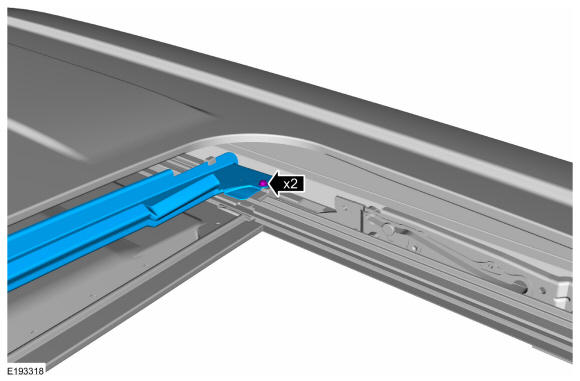

On both sides, remove the retainers.
Torque: 9 lb.in (1 Nm)
-
NOTE: Inset is LH side shown, RH side similar.

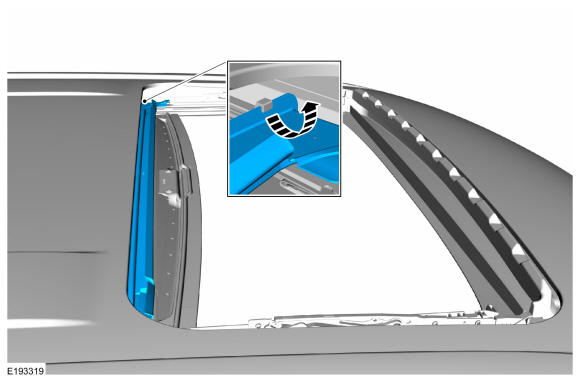

On both sides, roll the trough assembly out of the guide clips to remove.
