Roof Opening Panel Blind: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

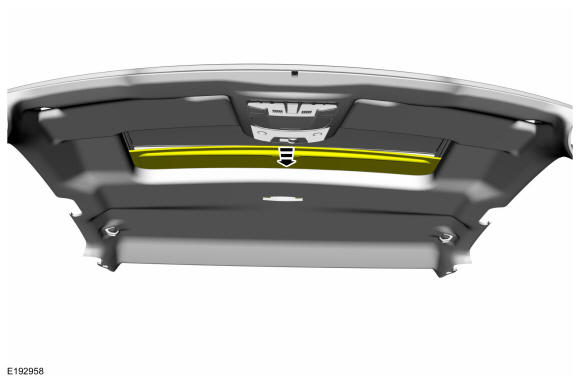

- Place the roof opening panel shield to the fully OPEN position.

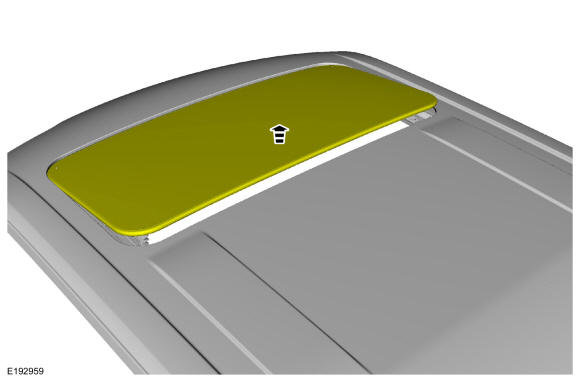

- Place the roof opening panel glass to the VENT position.
-
NOTE: LH side shown, RH side similar.

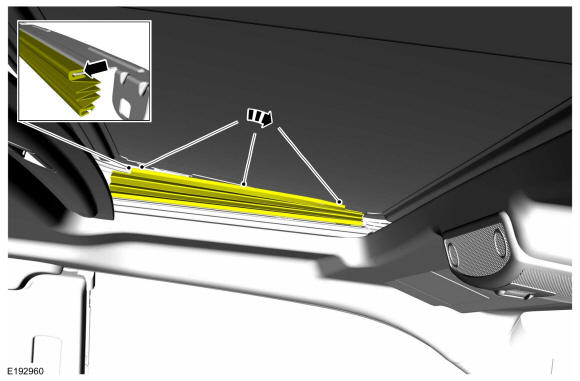

On both sides, detach the top portion of the roof opening panel blind from the roof opening panel glass frame.
-
NOTE: LH side shown, RH side similar.

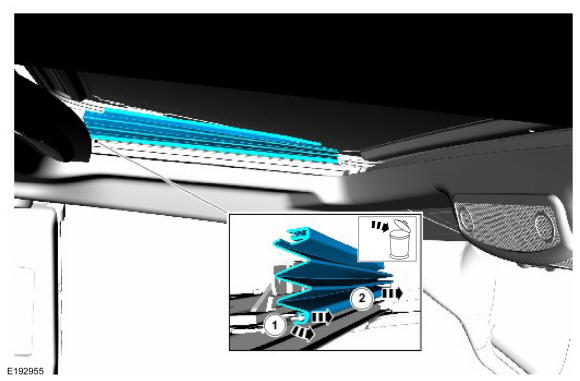

On both sides, remove and discard the roof opening panel blinds.
- Detach the bottom of the roof opening panel blind from the drip link.
- Pull forward to remove the roof opening panel blind. Discard the blind.
