Section 460 (Roof Opening Panel)
>>
Description And Operation
>>
Roof Opening Panel - Component Location
Roof Opening Panel - Component Location
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.

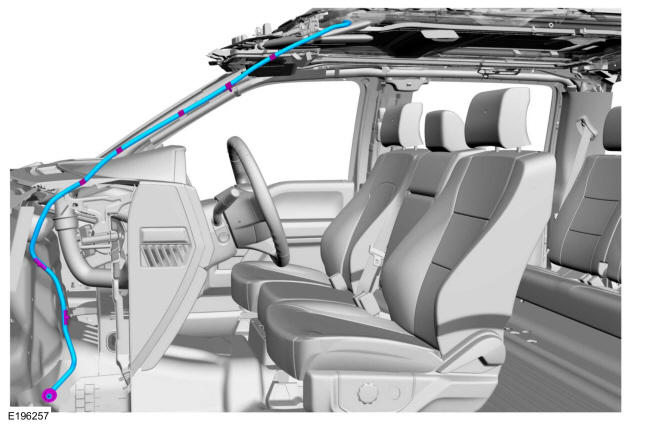

Roof Opening Panel Front Drain Tubes
Courtesy of FORD MOTOR COMPANY

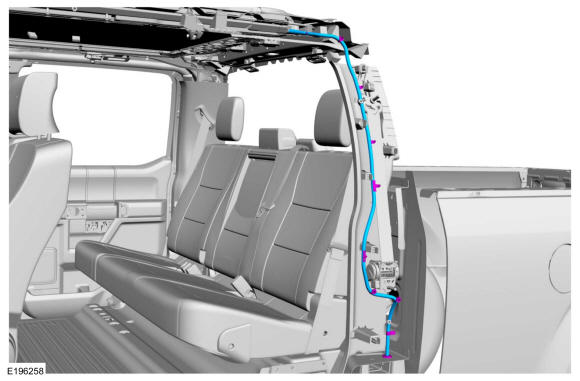

Roof Opening Panel Rear Drain Tubes
Courtesy of FORD MOTOR COMPANY
