Brake Pedal Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

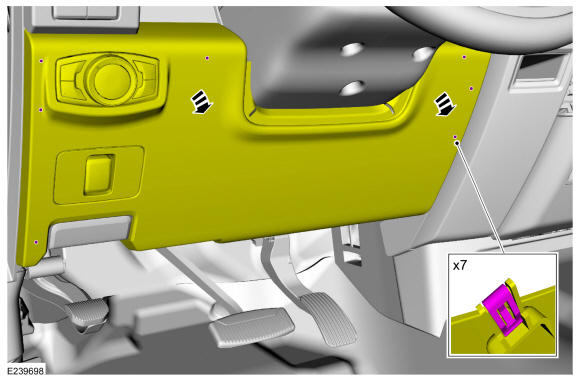

  1. Detach the clips and lower the steering column opening trim panel.
    GFD200958Courtesy of FORD MOTOR COMPANY

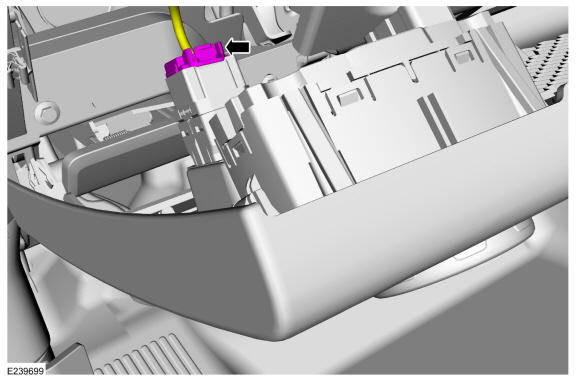

  2. Disconnect the brake pedal control switch electrical connector.
    GFD200969Courtesy of FORD MOTOR COMPANY

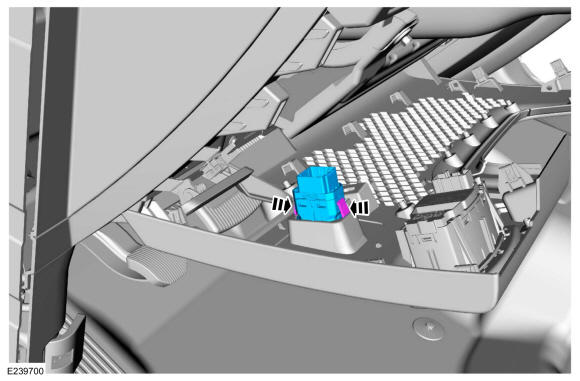

  3. Push inward on the tabs and remove the brake pedal control switch.
GFD200970Courtesy of FORD MOTOR COMPANY
