Brake Master Cylinder: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

If equipped with a secondary battery, remove the secondary battery tray. Refer to: Battery Tray .

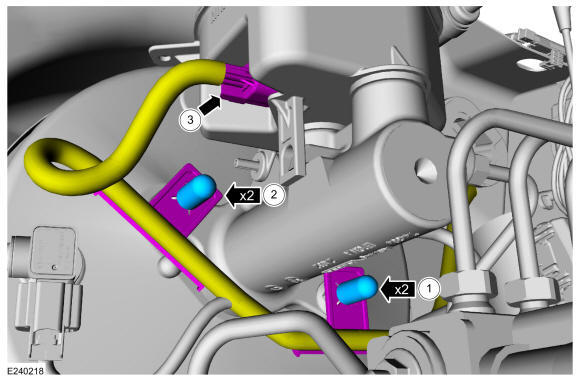

1. If equipped, remove the caps.
2. Detach the wiring harness retainers.
3. Disconnect the brake fluid level sensor electrical connector and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

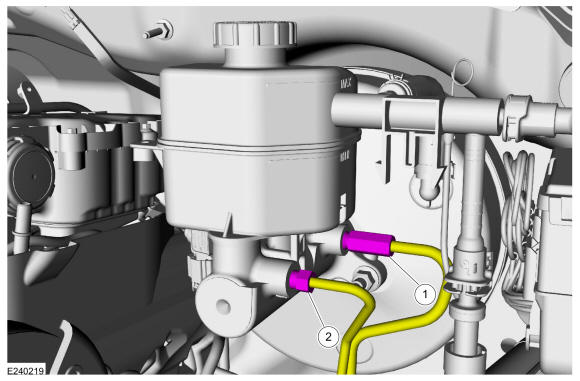

1. Disconnect the primary brake tube fitting.
  Torque: 22 lb.ft (30 Nm)
2. Disconnect the secondary brake tube fitting.
  Torque: 16 lb.ft (22 Nm)
Courtesy of FORD MOTOR COMPANY

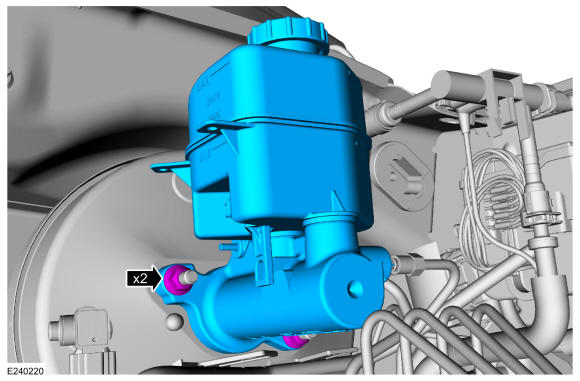

Remove the nuts and the brake master cylinder.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
