Rear Door Check Arm - SuperCrew: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

Remove the check arm bolt.
Torque: 17 lb.ft (22.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCrew .

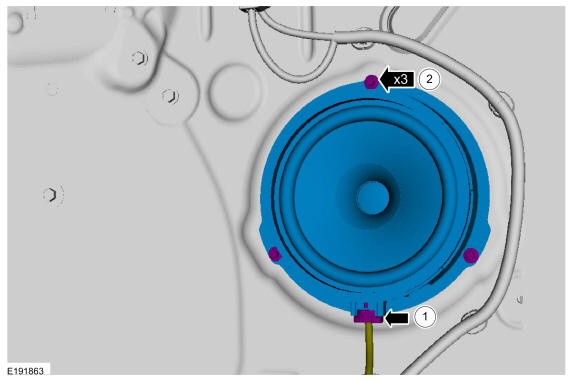

Remove the speaker.
1. Disconnect the electrical connector.
2. Remove the bolts and the speaker.
Courtesy of FORD MOTOR COMPANY
Remove the nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the check arm assembly.

Courtesy of FORD MOTOR COMPANY
