Fuel Filler Door Assembly: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Remove the fuel filler door. Refer to: Fuel Filler Door .

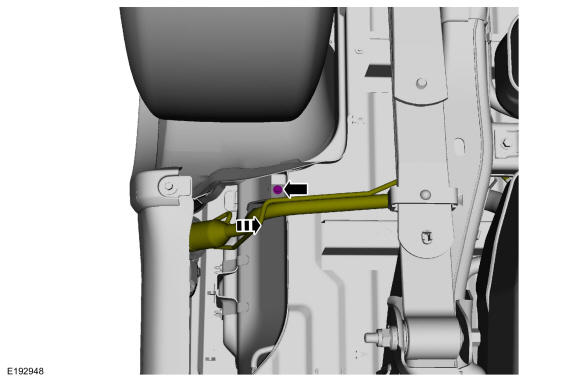

- Remove the bolt and pull the fuel tank filler pipe from the fuel filler door assembly.
Torque: 133 lb.in (15 Nm)

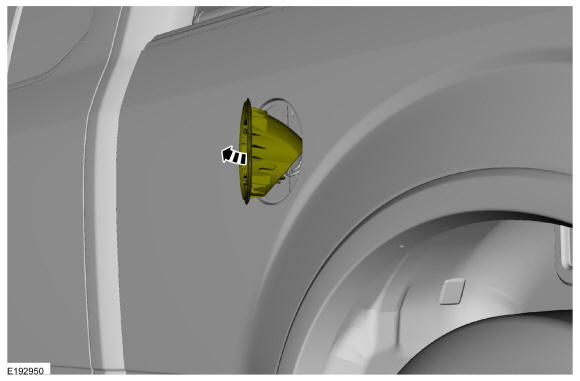

- Unseat the fuel filler door assembly boot from inside the wheel opening.
-

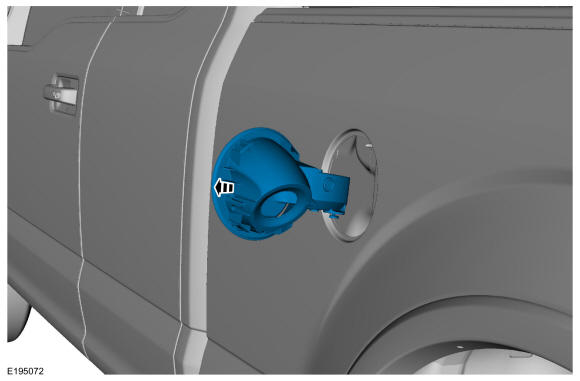

NOTE: Clearance is limited. When all four clips release, the housing can be rotated.
Rotate the housing.
- Pull the housing away from the vehicle and remove.
