Fuel Filler Door - 3.0L Power Stroke Diesel: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Open the fuel filler door.
 Courtesy of FORD MOTOR COMPANY
|

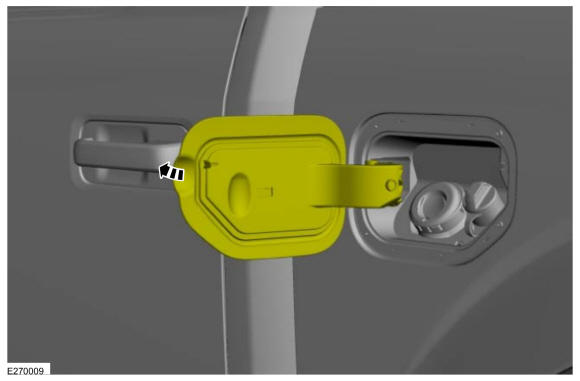

- Using a screwdriver, pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge. Use the General Equipment: Flat-Bladed Screwdriver
 Courtesy of FORD MOTOR COMPANY
|
