Front Door - SuperCab: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

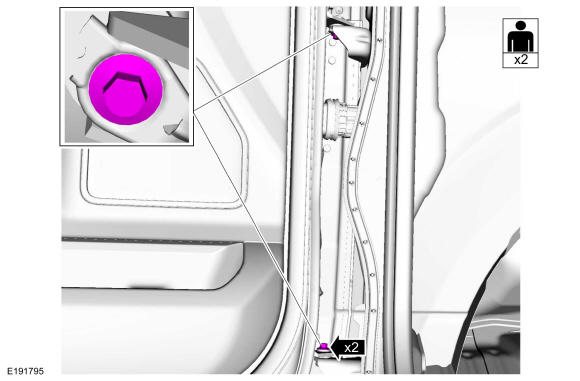

- Remove the check arm bolt.
Torque: 17 lb.ft (22.5 Nm)

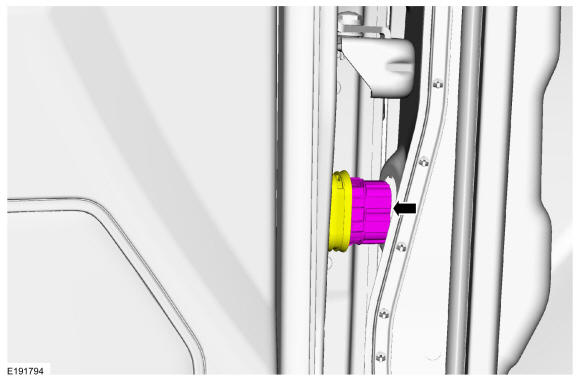

- Disconnect the front door electrical connector.
-
NOTE: This step requires the aid of another technician.
Remove the door hinge pivot bolts.
Torque: 22 lb.ft (30 Nm)
-
NOTE: This step requires the aid of another technician.

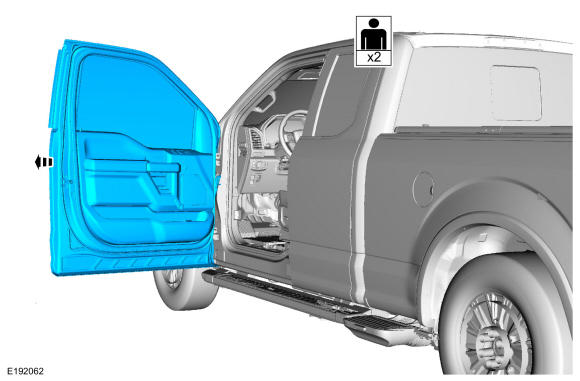

Remove the door.
