Rear Door Alignment - SuperCrew
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
LH side shown, RH side similar.

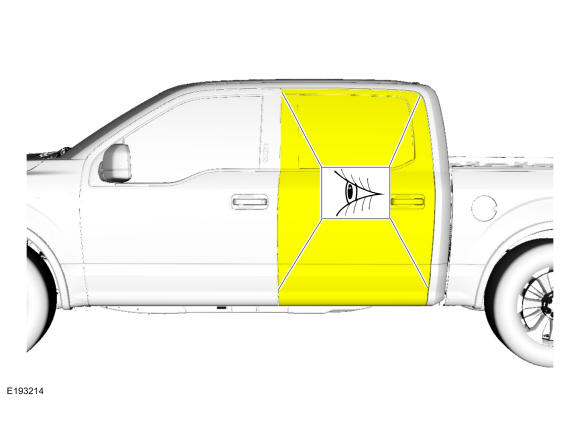

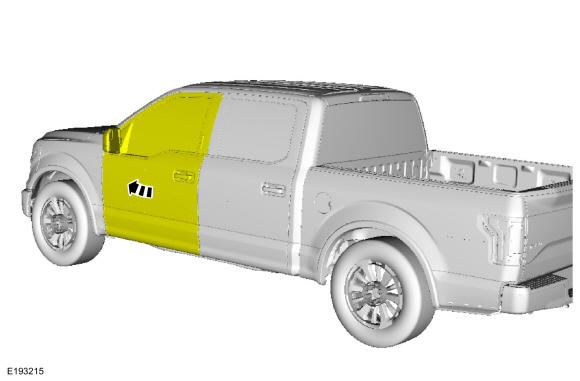

- Inspect the rear door-to-body dimensions.
Adjustment
All alignments
- Open the rear door.

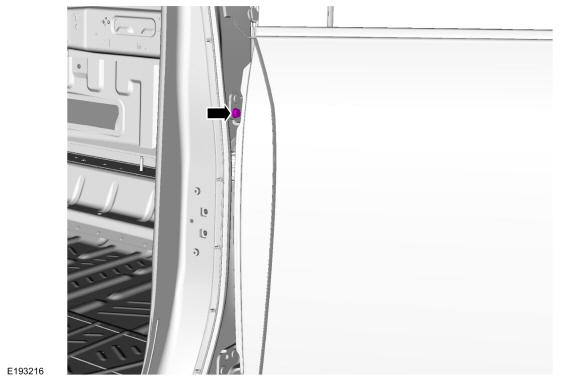

- Remove the bolts and the striker assembly.
Rear door in and out, up and down alignment

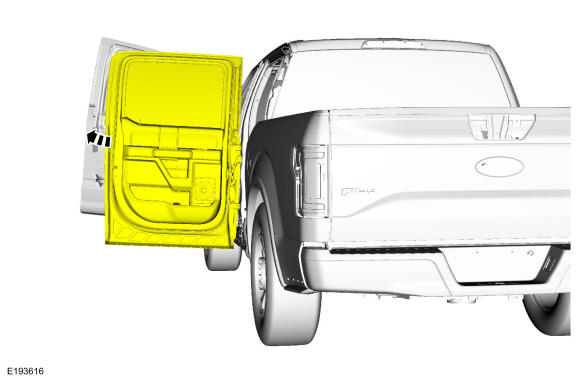

- Open the rear door.
- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

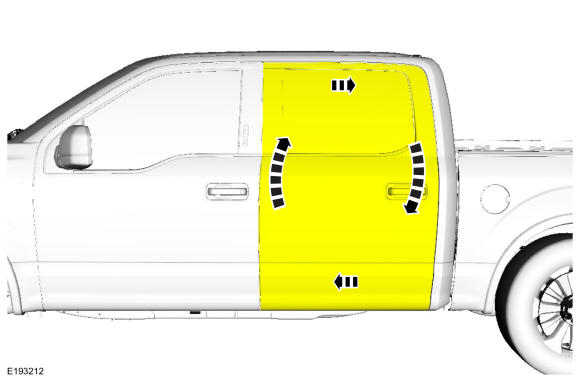

- Adjust the door as required.
- Tighten the bolts.
Torque: 41 lb.ft (55 Nm)
Rear door fore, aft and tilt alignment
- Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCrew .

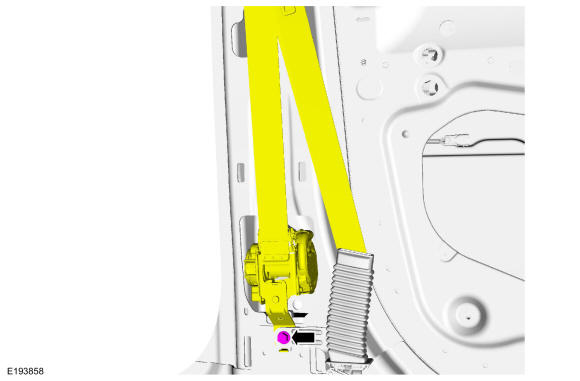

- Remove the bolt and position aside the safety belt retractor.
Torque: 30 lb.ft (40 Nm)
- Open the front door.
- Open the rear door.

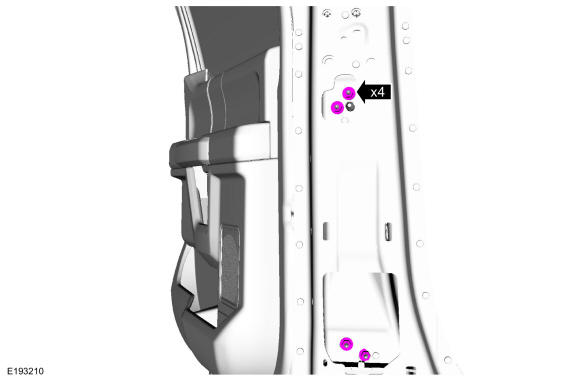

- Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)
- Loosen the bolt to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the rear door.
- Carefully close the front door.
- Adjust the door as required.
- Carefully open the front door.
- Carefully open the rear door.
- Tighten the nuts.
Torque: 22 lb.ft (30 Nm)
- Tighten the bolt.
Torque: 89 lb.in (10 Nm)
All alignments
- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)
- Inspect the body-to-rear door dimensions.
- Install the removed components.
- During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
