Front Door Alignment - Regular Cab SuperCrew

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

NOTE: Regular Cab shown, SuperCrew similar.

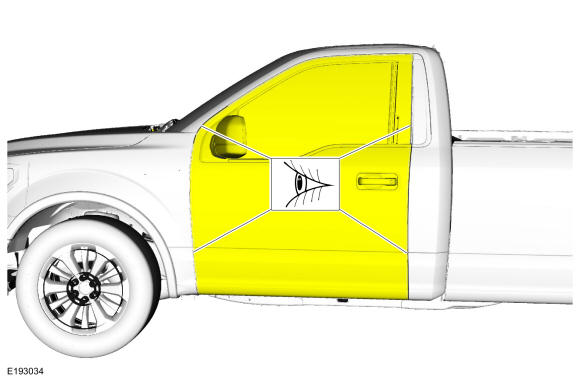

Inspect the front door-to-body dimensions.

Adjustment

All alignments

Open the door.

Courtesy of FORD MOTOR COMPANY

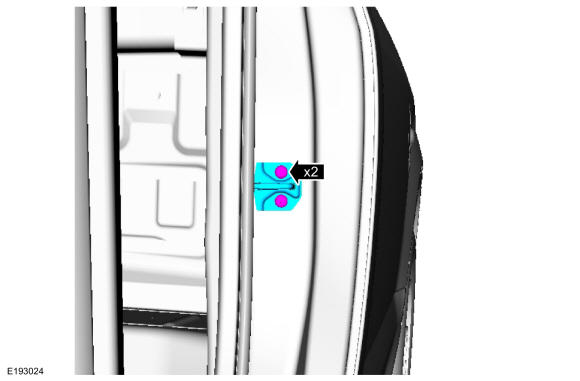

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment
Open the door.

Courtesy of FORD MOTOR COMPANY
Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment
Open the door.

Courtesy of FORD MOTOR COMPANY
Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

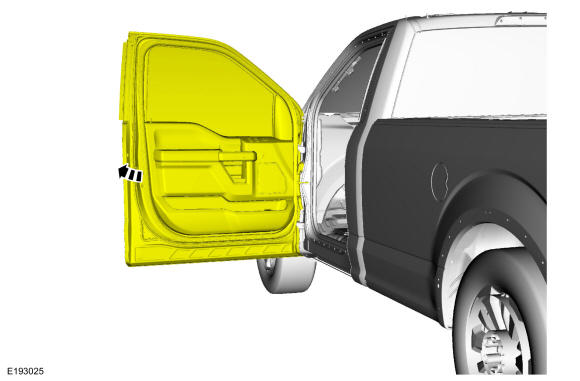

Carefully close the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door as required.

Courtesy of FORD MOTOR COMPANY

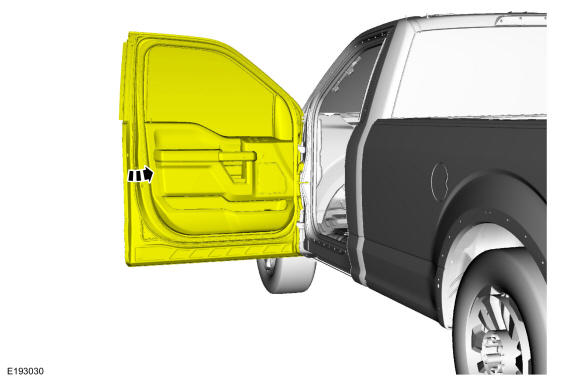

Carefully open the door.

Courtesy of FORD MOTOR COMPANY
NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the figure below

Courtesy of FORD MOTOR COMPANY

Tighten the bolts.

Torque: 20 lb.ft (27.5 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
