Rear Seat LH - SuperCrew: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the RH seat. Refer to: Rear Seat RH - SuperCrew .
- Remove the seat bolts.

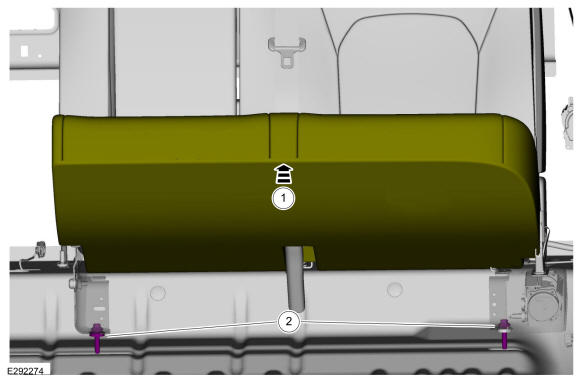

- Raise the LH seat cushion.
- Remove the bolts.
Torque: 35 lb.ft (47 Nm)
Vehicles without inflatable seatbelts

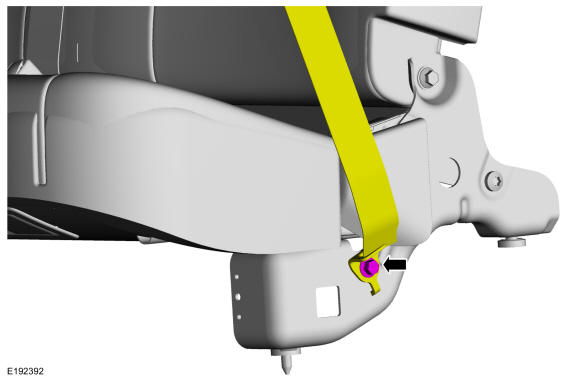

- Remove the anchor bolt and position aside the seatbelt.
Torque: 30 lb.ft (40 Nm)
Vehicles with inflatable seatbelts
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
-
NOTE: Follow the unique instruction or graphic for this step in installation.
Open the seatbelt tongue cover.
- Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
- Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
- Push the seatbelt tongue lower cover forward to disengage and open the cover.
-
NOTE: Follow the unique instruction or graphic for this step in installation.
Disassemble the lap belt from the seatbelt tongue.
- Push down on the lap belt spring clip.
- Remove the pin.
- Pull the lap belt through the seatbelt tongue cover.
All vehicles
-
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: The striker should be in its lowest position for the latch to engage.
Fold the LH rear seat backrest down.
- Raise the seat cushion.
- Release the backrest latch.
- Fold the backrest down.
- If equipped with a subwoofer. Disconnect the electrical connector, remove the fasteners and the subwoofer.
Torque: 62 lb.in (7 Nm)
-

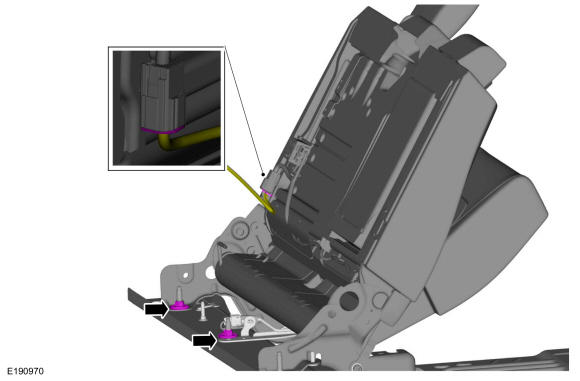

- If equipped. Disconnect the heated seat electrical connector.
- Remove the seat nuts.
Torque: 59 lb.ft (80 Nm)

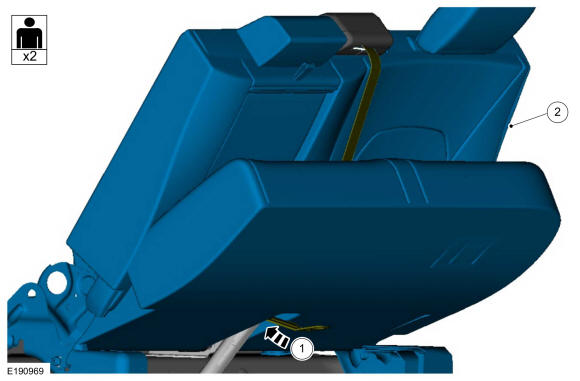

- Remove the seat.
- Route the center seatbelt through the cushion opening.
- Remove the seat.
