Rear Seat Backrest Cover - SuperCrew: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH (left-hand) shown, RH (right hand) similar.

Remove the rear seat. Refer to Rear Seat LH - SuperCrew or Rear Seat RH - SuperCrew
Remove the rear seat backrest. Refer to: Rear Seat Backrest - SuperCrew .
Remove the rear head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .
If equipped. Remove the rear seat armrest. Refer to: Rear Seat Armrest - SuperCrew .

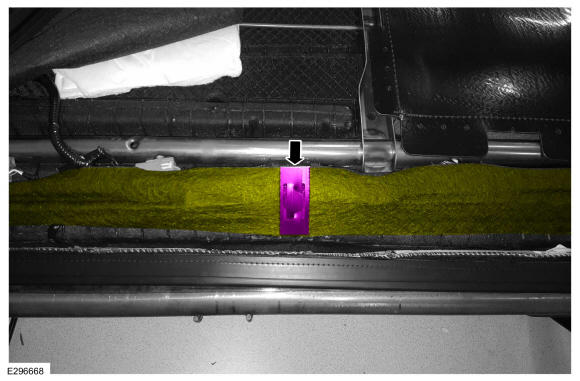

Release the rear seat backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
On both sides, unzip the rear seat backrest cover.

Courtesy of FORD MOTOR COMPANY
Release the rear seat backrest cover rear strap and position aside.

Courtesy of FORD MOTOR COMPANY

LH seat

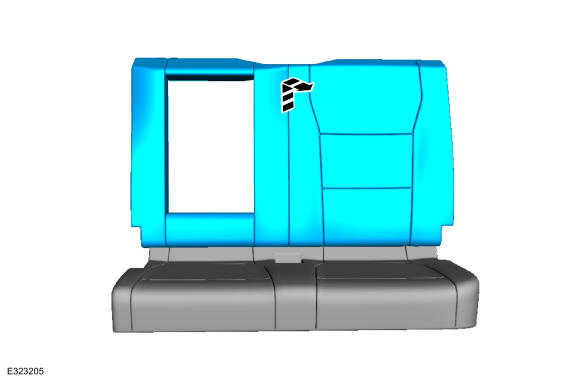

Release the rear seat backrest center J-clip and armrest cavity retainers.

Courtesy of FORD MOTOR COMPANY

All seats
NOTE: Use care when separating the backrest cover from the hook-and-loop strip or the hook-and-arrow can be torn from the foam pad.

NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook-and-arrow can be torn from the foam pad.

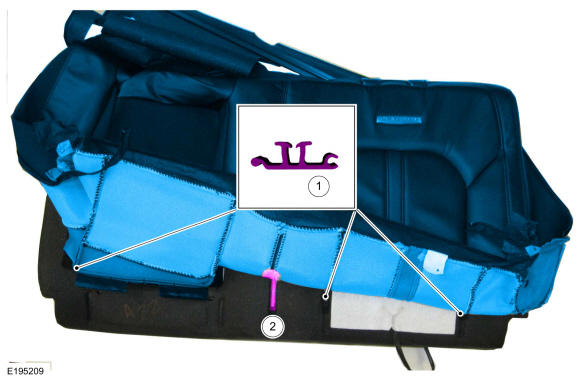

Remove the rear seat backrest cover from the foam pad.
1. Release the hook-and-arrows.
2. Release the hook-and-loop strip.
Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.
Remove the backrest foam.

Courtesy of FORD MOTOR COMPANY
