Rear Head Restraint Guide Sleeve: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH seat shown, RH similar.
-
NOTE: Follow the unique instructions or graphics for this step in installation.

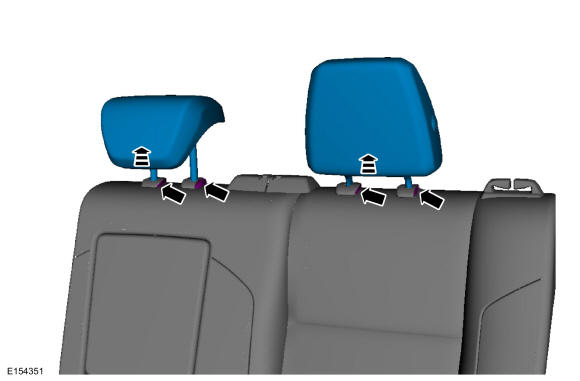

While pressing the primary and secondary head restraint release buttons, lift and remove head restraint(s).
-
NOTE: Typical head restraint guide sleeve shown, others similar.

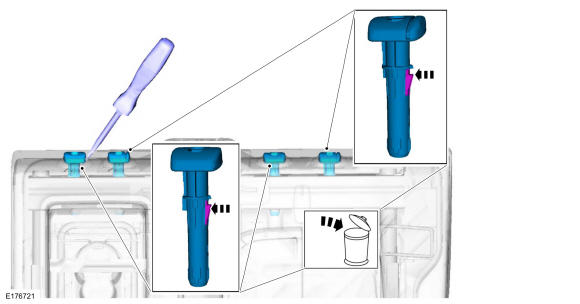

Release the head restraint guide sleeves locking tabs, using a flat head screwdriver. Remove the head restraint guide sleeves and discard. Use the General Equipment: Flat Headed Screw Driver
