Heated Rear Seat Module - SuperCrew: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The backrest latch is only accessible when the seat cushion is raised.

NOTE: The striker should be in its lowest position for the latch to engage.

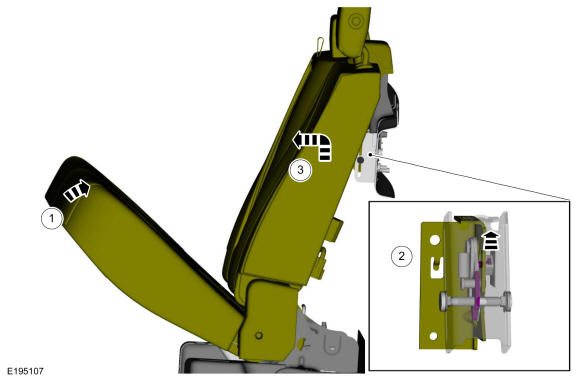

Release and lower the LH seat backrest.
1. Raise the seat cushion.
2. Release the seat backrest latch.
3. Lower the backrest.
Courtesy of FORD MOTOR COMPANY

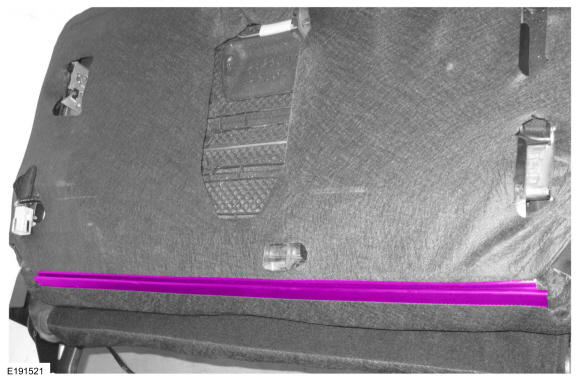

Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY

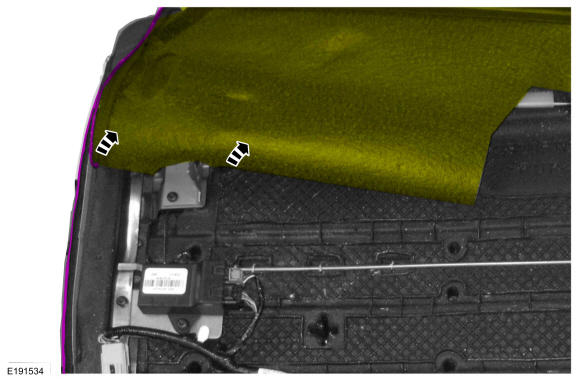

Unzip and open the backrest cover.

Courtesy of FORD MOTOR COMPANY

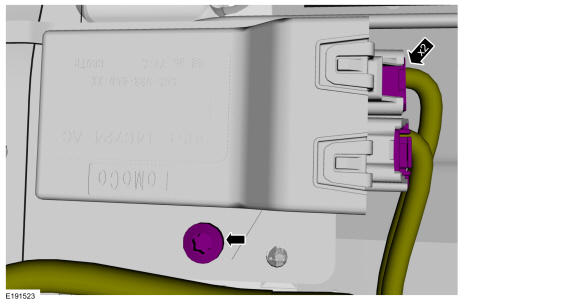

Disconnect the electrical connectors. Remove the module fastener.

Courtesy of FORD MOTOR COMPANY

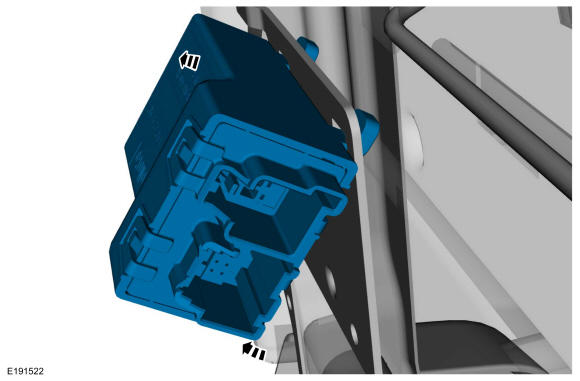

Rotate and remove the heated seat module.

Courtesy of FORD MOTOR COMPANY
