Front Bumper: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

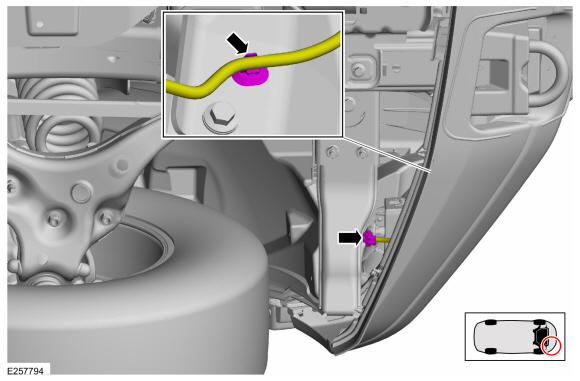

On both sides. Disconnect the fog lamp electrical connector, detach the wiring harness retainer and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

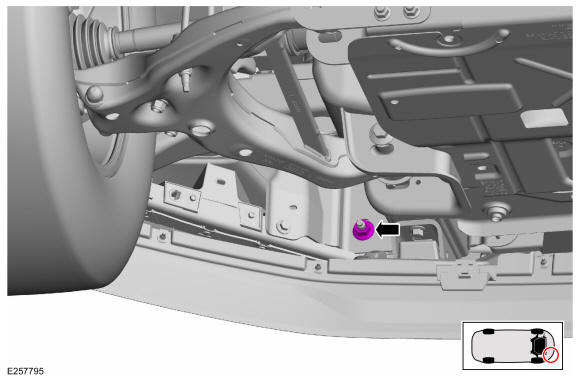

On both sides. Remove the front bumper nut.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

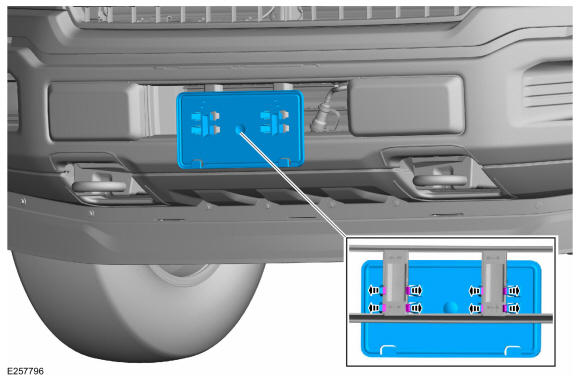

Release the tabs and remove the license plate bracket.

Courtesy of FORD MOTOR COMPANY

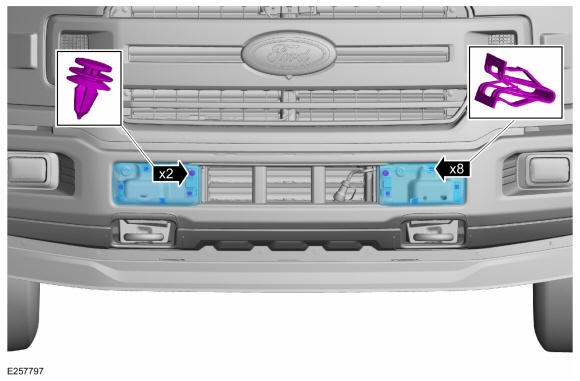

Release the clips and remove the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY

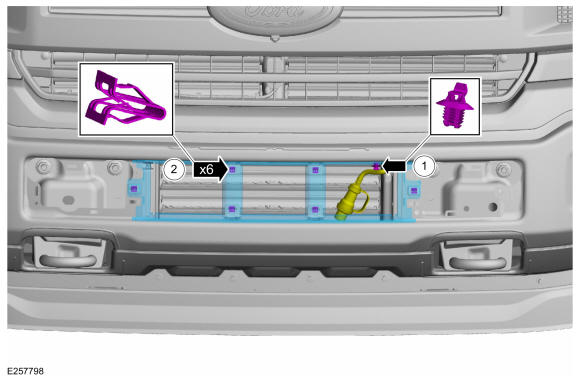

1. Detach the wiring harness retainer and position the engine block heater wiring harness aside.
2. Release the clips and remove the front bumper grill.
Courtesy of FORD MOTOR COMPANY
If equipped. Remove the CCM. Refer to: Cruise Control Module (CCM) .

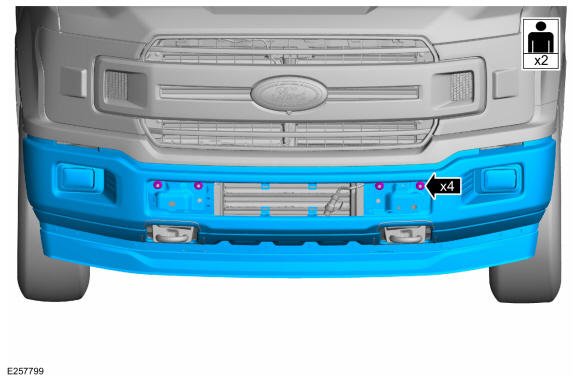

With the help of an assistant. Remove the nuts and the front bumper.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
