Front Bumper - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

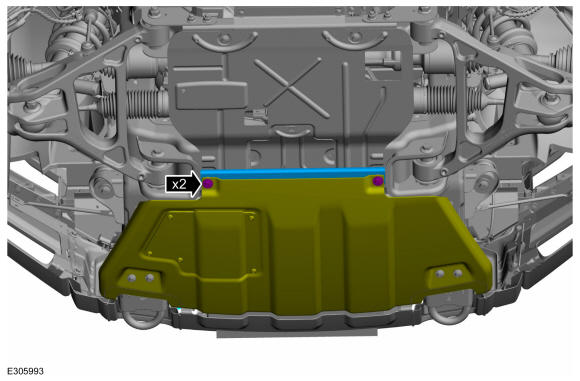

Remove the bolts and the spacer.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

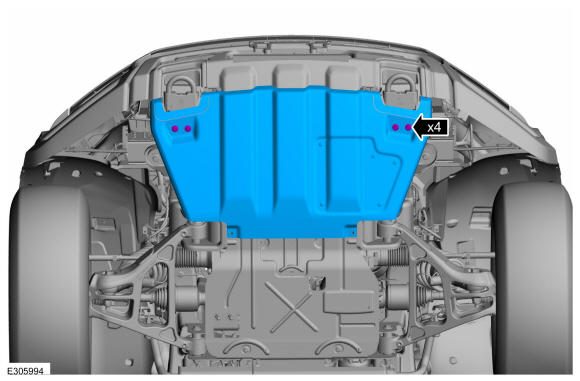

Remove the bolts and the front underbody skid plate.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

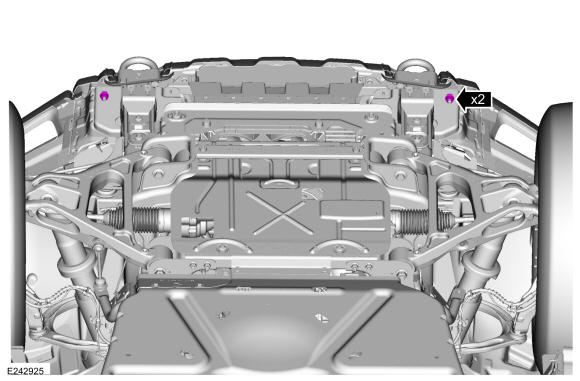

Remove the front bumper nuts.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

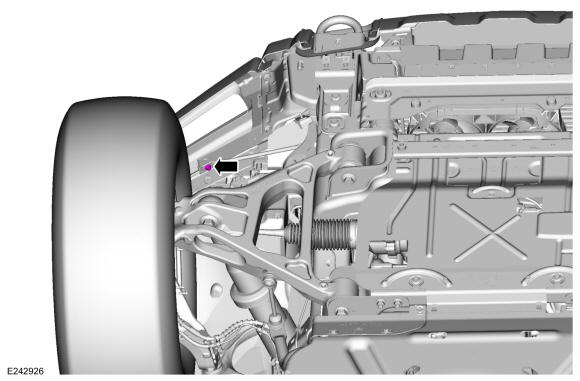

Remove the outer bumper support bolt.

Courtesy of FORD MOTOR COMPANY

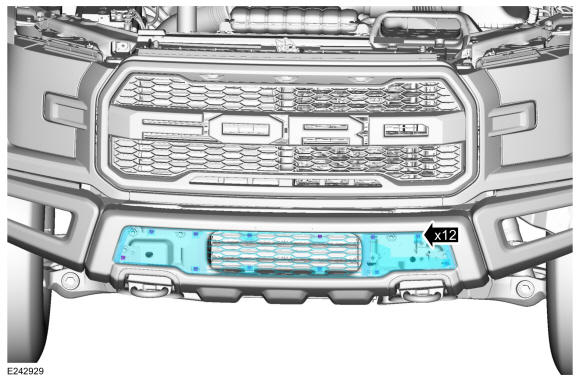

Remove the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the radiator grille.

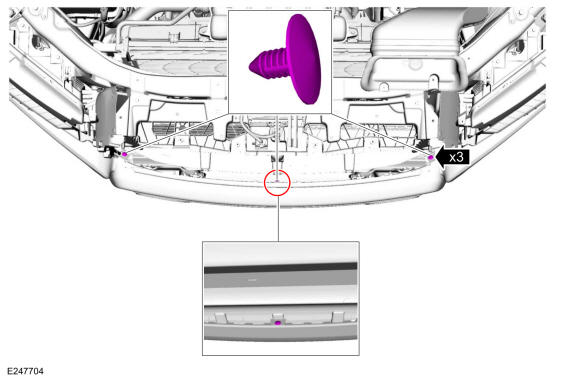

Remove the air deflector push pins.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the CCM. Refer to: Cruise Control Module (CCM) .

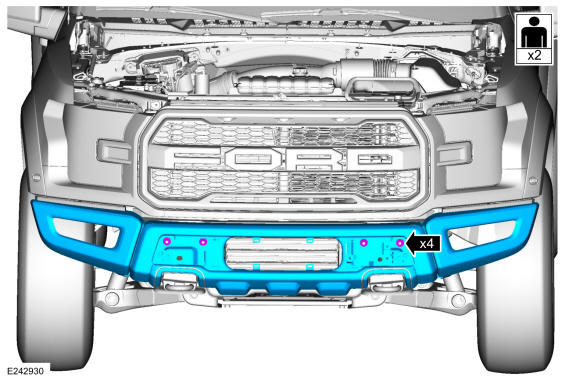

With help of an assistant, remove the nuts and the front bumper.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
