Rear Bumper: Disassembly
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear bumper. Refer to: Rear Bumper .

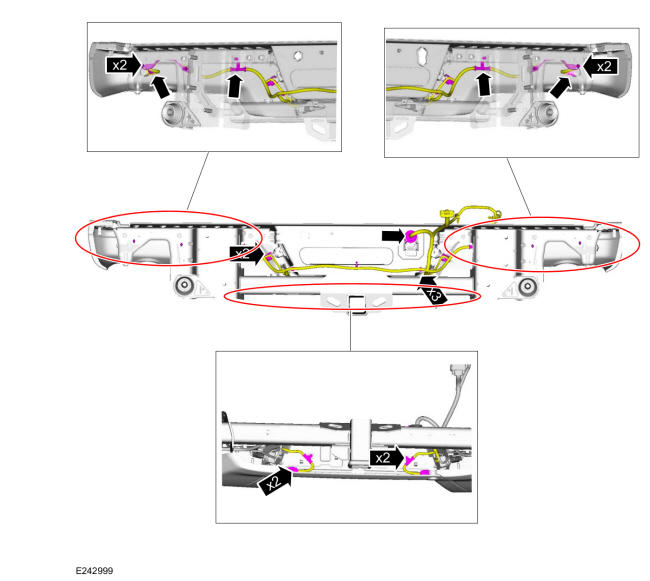

- Disconnect the electrical connectors, separate the wire harness guides and remove the rear bumper wire harness

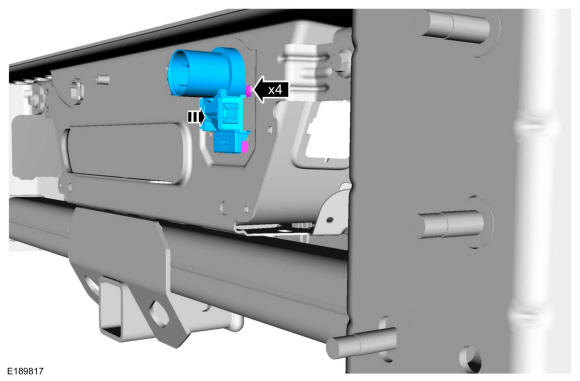

- Release the tabs and remove the license plate lamp.

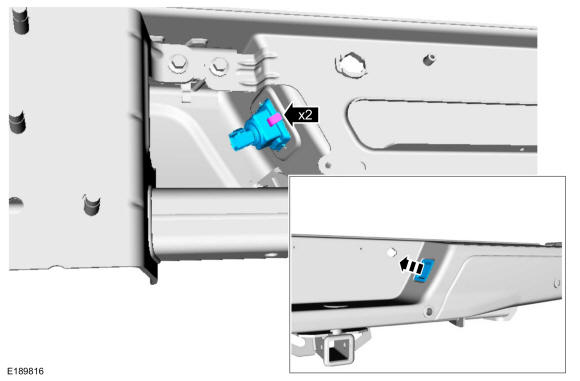

- Release the tabs and remove the trailer brake electrical connector.

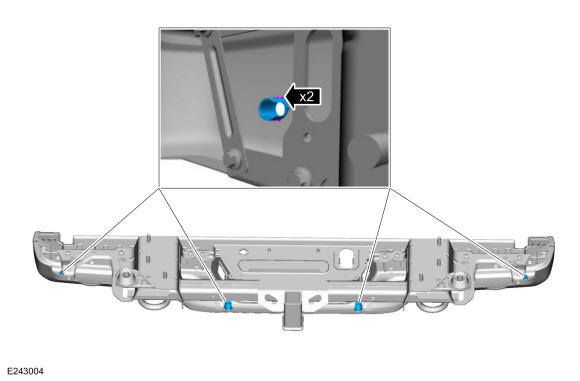

- Remove the parking aid sensors.

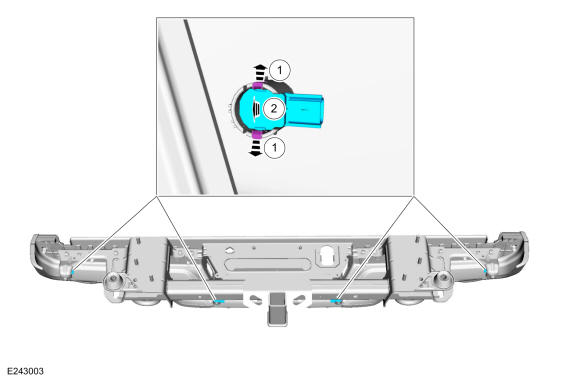

- Release the tabs.
- Remove the parking aid sensor from the parking sensor bracket.
- Release the tabs and remove the parking aid sensor brackets.

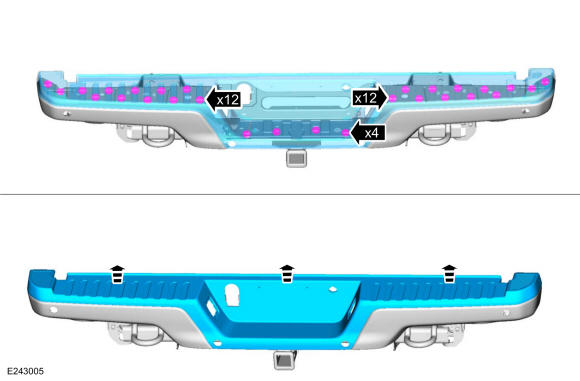

- Release the tabs and remove the rear bumper step plate.

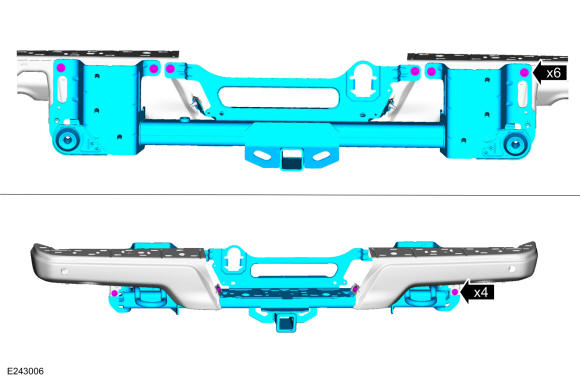

- Remove the screws and the trailer hitch assembly.
Torque
: 18 lb.ft (25 Nm)
-
NOTE: On both sides.
Remove the screws and the outer rear bumper brace.
Torque
: 18 lb.ft (25 Nm)
