Front Bumper - Raptor: Disassembly
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front bumper. Refer to: Front Bumper - Raptor .

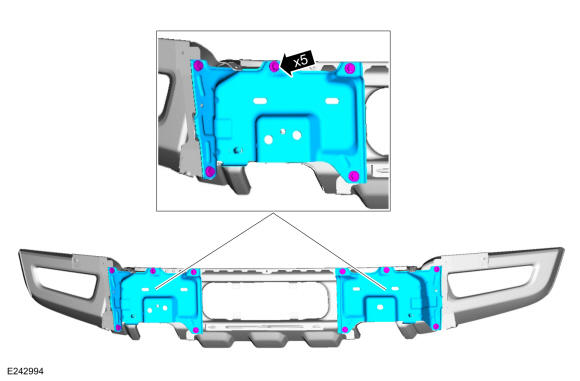

- Remove the bolts and the front bumper brackets.
Torque
: 177 lb.in (20 Nm)

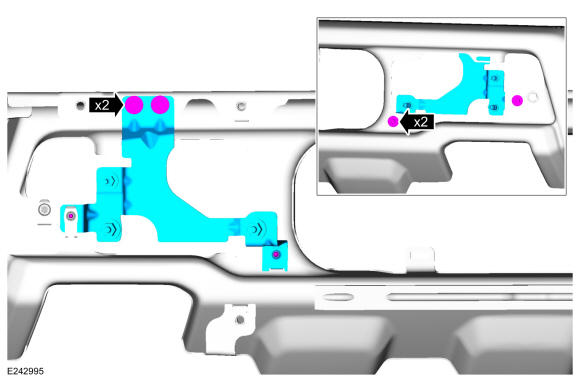

- Remove the front and rear bolts and the CCM bracket.
Torque
: 93 lb.in (10.5 Nm)
-
NOTE: On both sides.

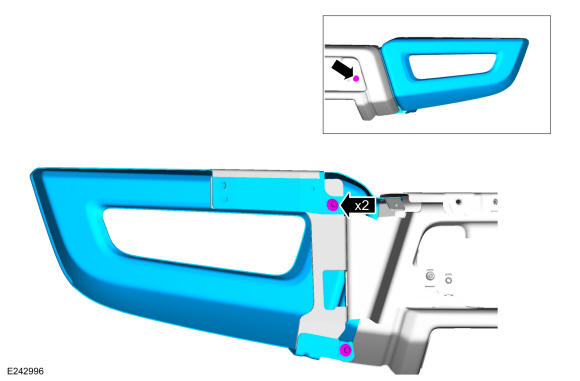

Remove the front and rear bolts and the outer front bumper assembly.
Torque
: 177 lb.in (20 Nm)
