Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The available speaker configurations are shown first. The remaining hidden audio system components follow the speaker configurations.
NOTE:
Some vehicles may not be equipped with all the optional components shown.

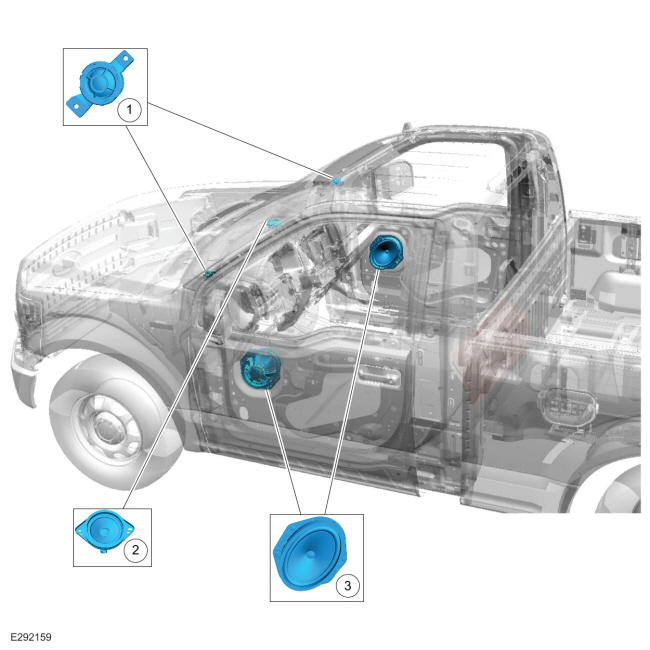

5 Speaker System
| Item | Description |
|---|---|
| 1 | Tweeter speakers |
| 2 | Instrument panel center speaker |
| 3 | Front door speakers |
7 Speaker System
| Item | Description |
|---|---|
| 1 | Tweeter speakers |
| 2 | Instrument panel center speaker |
| 3 | Front door speakers |
| 4 | Rear door speakers |

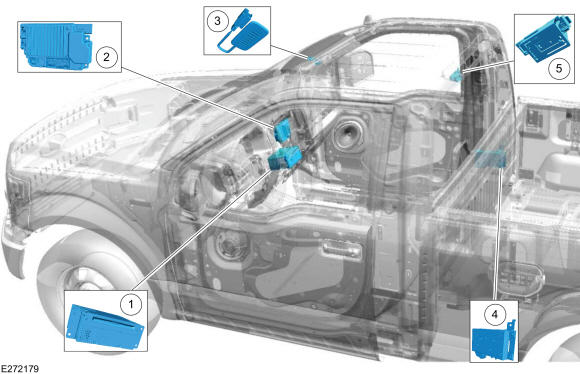

Audio/SYNC System Main Components (2-door vehicles)
| Item | Description |
|---|---|
| 1 | ACM |
| 2 | APIM |
| 3 | Microphone |
| 4 | TCU |
| 5 | TCU antenna |

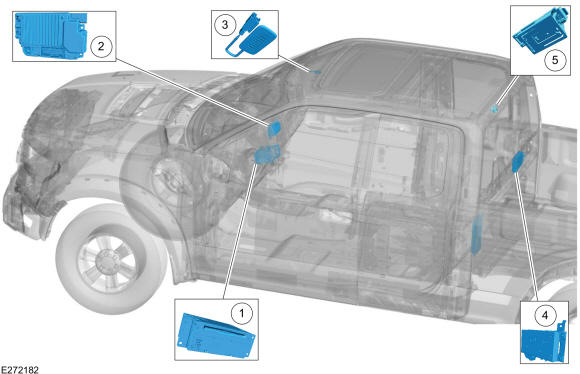

Audio/SYNC System Main Components (4-door vehicles)
| Item | Description |
|---|---|
| 1 | ACM |
| 2 | APIM |
| 3 | Microphone |
| 4 | TCU |
| 5 | TCU antenna |
USB Cable Routing
| Item | Description |
|---|---|
| 1 | USB cable |
| 2 | USB extension cable |
LVDS Cable Routing
| Item | Description |
|---|---|
| 1 | LVDS cable |

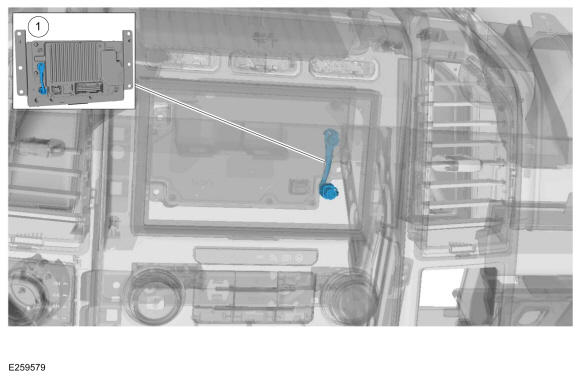

Audio Unit Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Audio unit antenna cable |

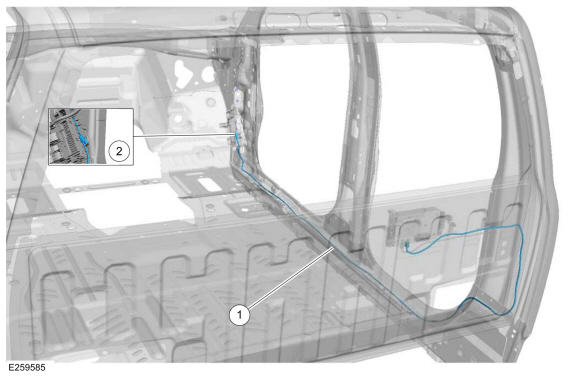

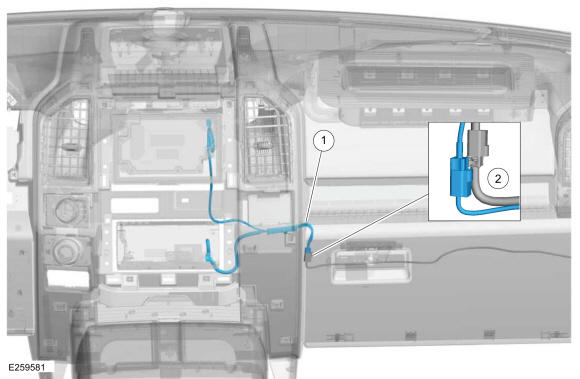

Lower Satellite/GPS Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Lower satellite/GPS antenna cable |
| 2 | Satellite/GPS antenna cable in-line connection |

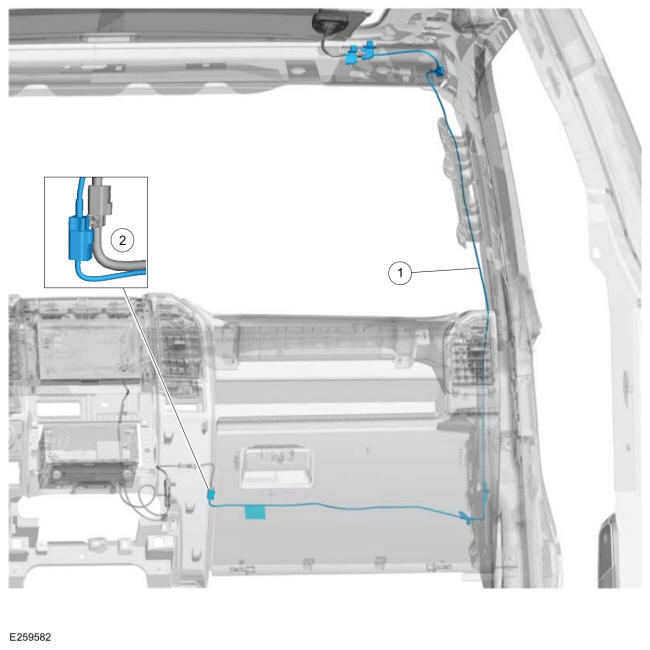

Upper Satellite/GPS Antenna Cable Routing (without vehicle WI-FI hotspot)
| Item | Description |
|---|---|
| 1 | Upper satellite/GPS antenna cable |
| 2 | Satellite/GPS antenna cable in-line connection |

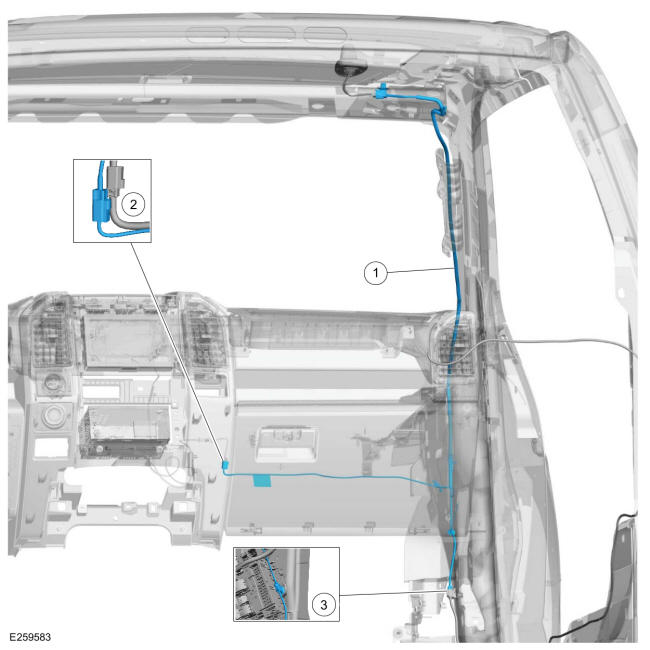

Upper Satellite/GPS Antenna Cable Routing (with vehicle WI-FI hotspot)
| Item | Description |
|---|---|
| 1 | Upper satellite/GPS antenna cable |
| 2 | Satellite/GPS antenna cable in-line connection |
| 3 | Cellular antenna cable in-line connection |

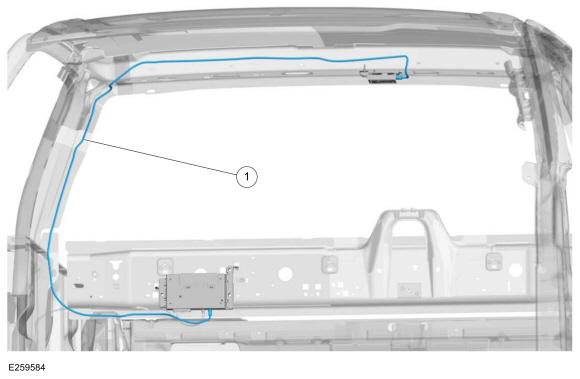

TCU Antenna Cable Routing (2-door vehicles)
| Item | Description |
|---|---|
| 1 | TCU antenna cable |

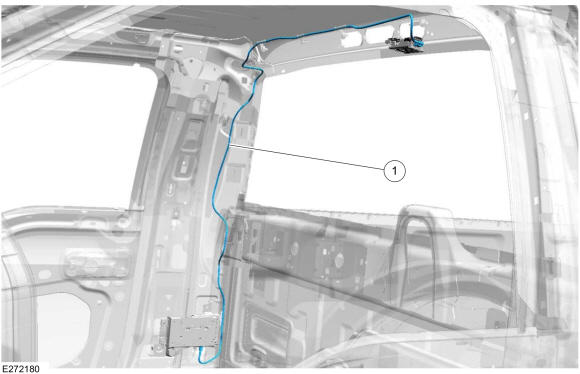

TCU Antenna Cable Routing (4-door vehicles)
| Item | Description |
|---|---|
| 1 | TCU antenna cable |
Cellular Antenna Cable Routing (2-door vehicles)
| Item | Description |
|---|---|
| 1 | Cellular antenna cable |
| 2 | Cellular antenna cable in-line connection |

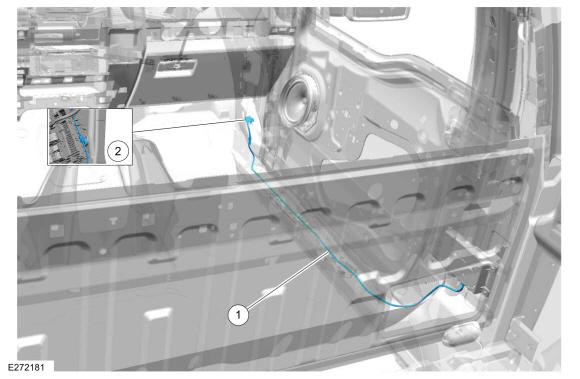

Cellular Antenna Cable Routing (4-door vehicles)
| Item | Description |
|---|---|
| 1 | Cellular antenna cable |
| 2 | Cellular antenna cable in-line connection |
