Side Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with short arm mirrors

  1. Position the side view camera down.

    1. Remove the screw.
    2. Using a small flat headed screw driver, release the tab. Use the General Equipment: Flat Headed Screw Driver
    3. Lower the side view camera.

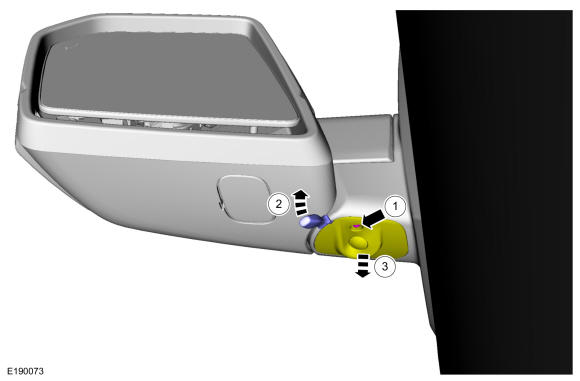

    GFD465745Courtesy of FORD MOTOR COMPANY
  2. Disconnect the side camera electrical connector.

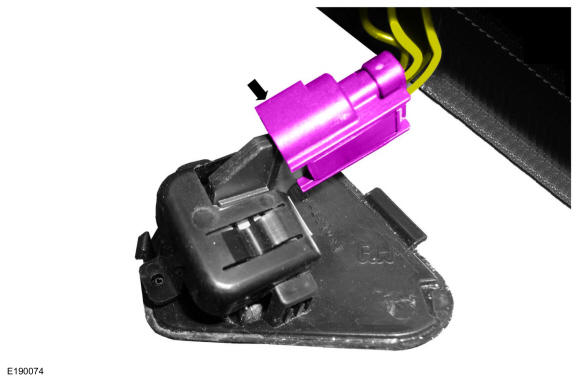

    GFD465746Courtesy of FORD MOTOR COMPANY
  3. Remove the side camera bracket and the side camera.

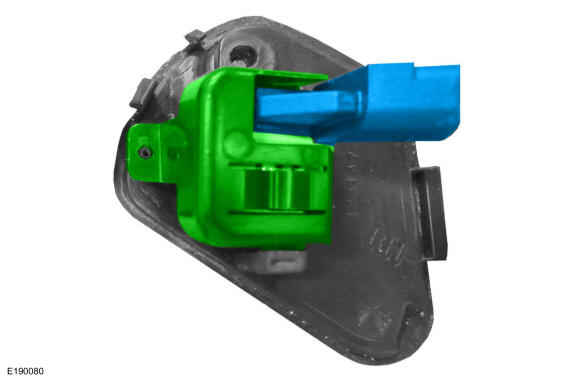

    GFD465747Courtesy of FORD MOTOR COMPANY

    Vehicles with long arm mirrors

  4. Remove the exterior mirror assembly.
  5. Remove the exterior mirror gasket.

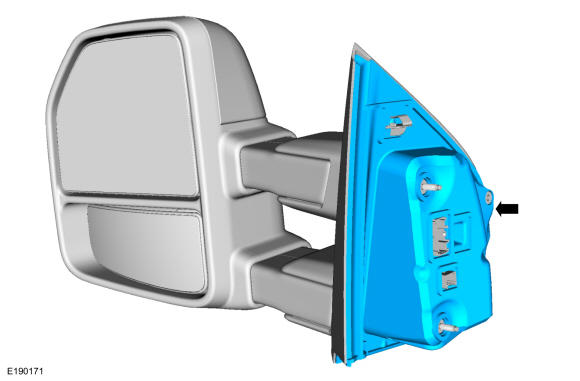

    GFD465748Courtesy of FORD MOTOR COMPANY
  6. Remove the exterior mirror base-to-arm cover screws.

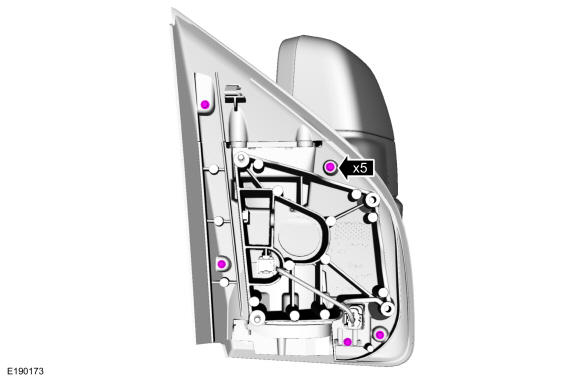

    GFD465749Courtesy of FORD MOTOR COMPANY
  7. Disconnect the side view camera electrical connector.

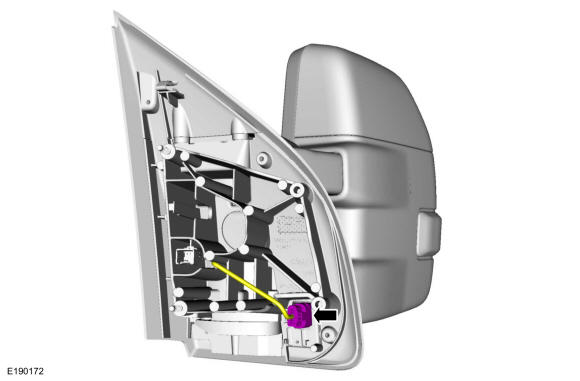

    GFD465750Courtesy of FORD MOTOR COMPANY
  8. Rotate the mirror head forward 30 degrees on the exterior mirror base.

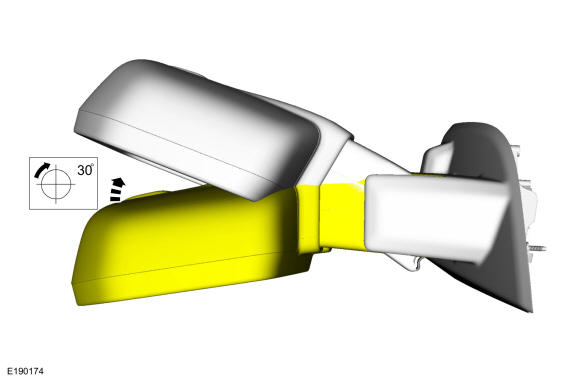

    GFD465751Courtesy of FORD MOTOR COMPANY
  9. Slide the mirror base cover outward.

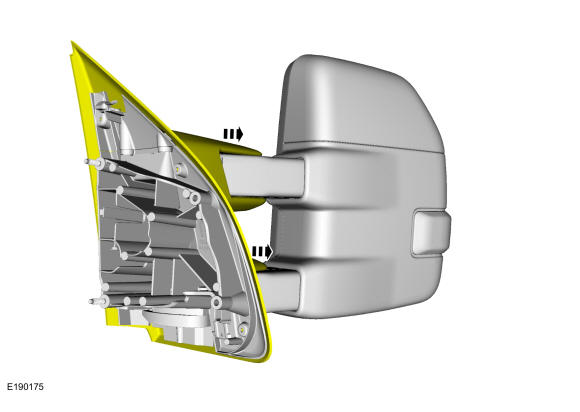

    GFD465752Courtesy of FORD MOTOR COMPANY
  10. Remove the side view camera.

    1. Release the side view camera bracket tabs.
    2. Remove the side view camera and bracket as an assembly.

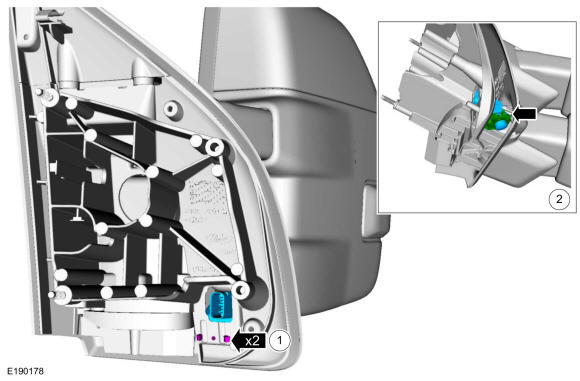

GFD465753Courtesy of FORD MOTOR COMPANY
