Rear Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. Refer to: Tailgate Release Handle .

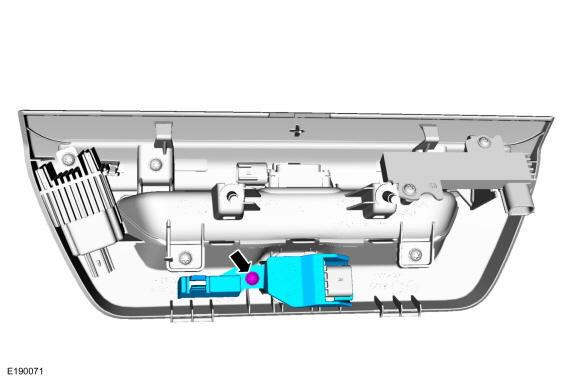

  2. Remove the screw and the rear parking aid camera bracket.
    GFD465742Courtesy of FORD MOTOR COMPANY

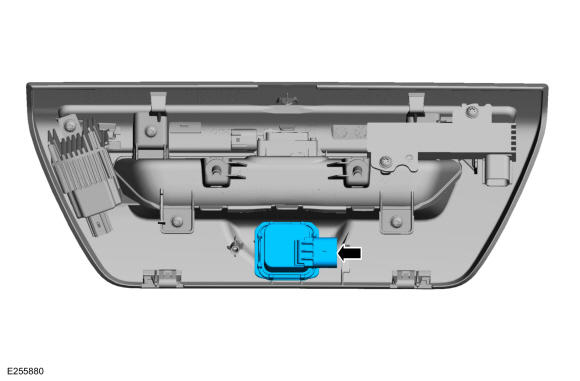

  3. Remove the rear parking aid camera.
GFD465743Courtesy of FORD MOTOR COMPANY
