Rear Parking Aid Camera: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

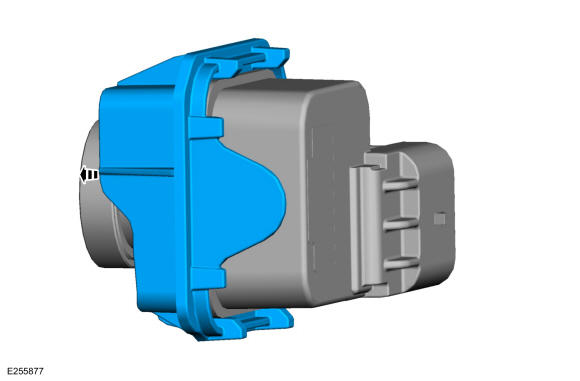

- If the replacement rear view camera does not have the spacer installed. Transfer the rear view camera spacer.
All vehicles
- To install, reverse the removal procedure.
Vehicles equipped with rear only parking aid camera
- Using a diagnostic scan tool, following the on screen instructions for the LIN New Module Initialization-BCM configure the BCM.
Vehicles equipped with 360° cameras only.
- Using a diagnostic scan tool, following the on screen instructions for the LIN New Module Initialization-IPMB configure the IPMB.
- Align the 360° cameras. Refer to: 360 Degree View Camera Alignment .
Vehicles equipped with 360° camera and Pro Trailer Backup Assist™
- Using a diagnostic scan tool, following the on screen instructions for the LIN New Module Initialization-IPMB configure the IPMB.
- Align the 360° cameras. Refer to: 360 Degree View Camera Alignment .
- Align the Pro Trailer Backup Assist™ camera system. Refer to: Pro Trailer Backup Assist Camera Alignment
.
Vehicles equipped with rear only parking aid camera and Pro Trailer Backup Assist™
- Using a diagnostic scan tool, following the on screen instructions for the LIN New Module Initialization-IPMB configure the IPMB.
- Align the Pro Trailer Backup Assist™ camera system. Refer to: Pro Trailer Backup Assist Camera Alignment .
