Image Processing Module B (IPMB): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary if the IPMB is being replaced.

NOTE: This procedure can be used for all locations of the component.

Using a diagnostic scan tool, begin the PMI process for the IPMB following the on-screen instructions.
Remove the FCIM. Vehicles Without: SYNC, Refer to: Front Controls Interface Module (FCIM) . Vehicles With: SYNC Without Touchscreen, Refer to: Front Controls Interface Module (FCIM) . Vehicles With: Bang and Olufsen Audio System, Refer to: Front Controls Interface Module (FCIM) .

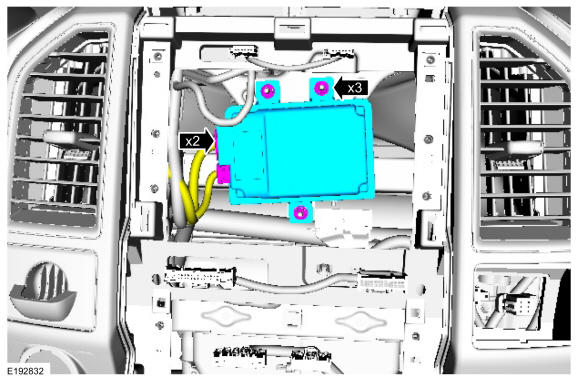

Remove the nuts, disconnect the electrical connectors and remove the IPMB.
