Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front fender molding.

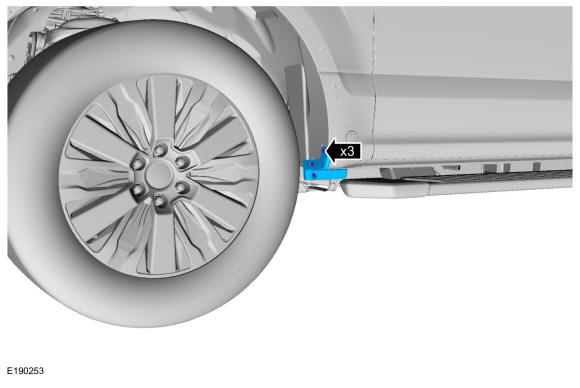

Remove the screws and the fender liner reinforcement.

Courtesy of FORD MOTOR COMPANY

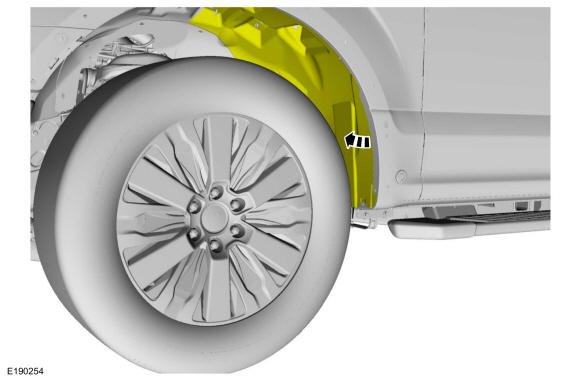

Position the fender splash shield aside.

Courtesy of FORD MOTOR COMPANY

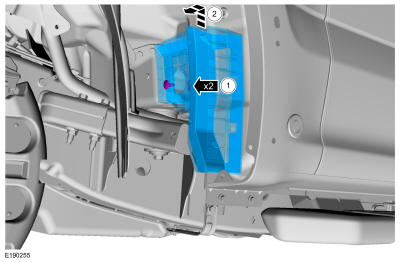

Remove the fender splash shield bracket.
1. Remove the 2 push pins.
2. Slide the fender splash shield bracket up and out.
Courtesy of FORD MOTOR COMPANY

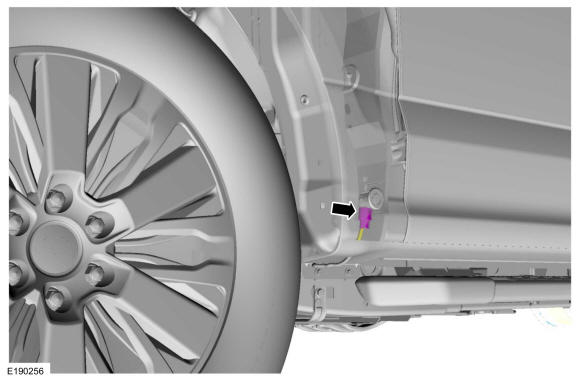

Disconnect the active park assist sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the active park assist sensor.
1. Release the tabs.
2. Remove the active park assist sensor from the bracket.
