Component Location - Active Park Assist

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

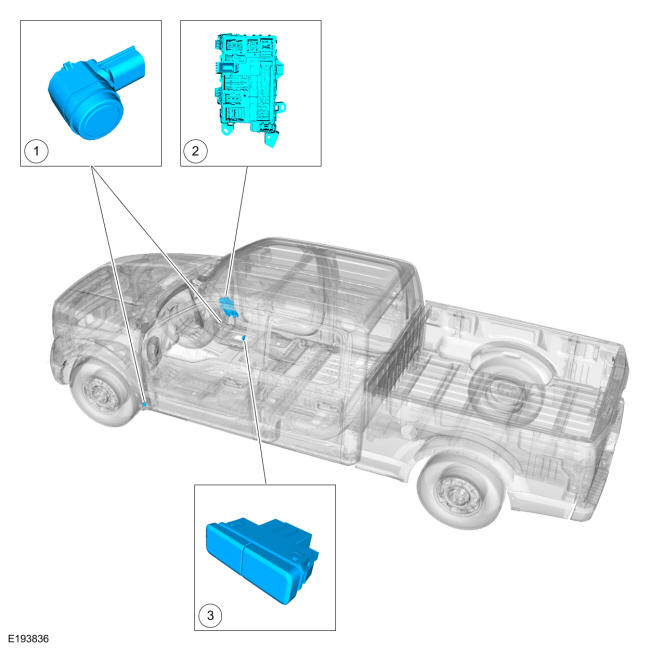

GFD465755Courtesy of FORD MOTOR COMPANY
Item Description
1 Active park assist sensors
2 PAM (integral to the BCM)
3 Active park assist switch
