Wheel Speed Sensor Ring - Vehicles With: Single Rear Wheels: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel hub. Refer to: Wheel Hub - Full Floating Axle - Vehicles With: Dana M275/Dana M300 . Refer to: Wheel Hub - Full Floating Axle - Vehicles With: Ford 10.5 Inch Ring Gear .

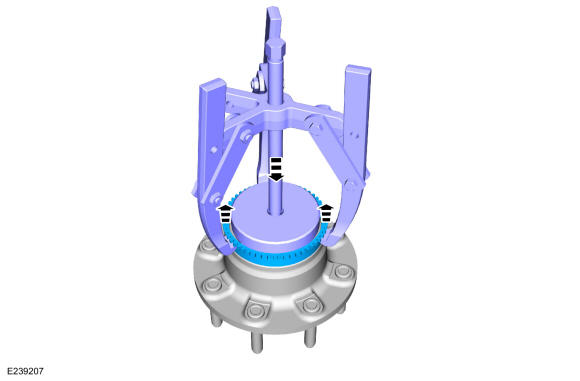

- Using a suitable step plate and 3-leg puller, remove the wheel speed sensor ring.
Use the General Equipment: Three Leg Puller
