Wheel Speed Sensor Ring - Vehicles With: Single Rear Wheels: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

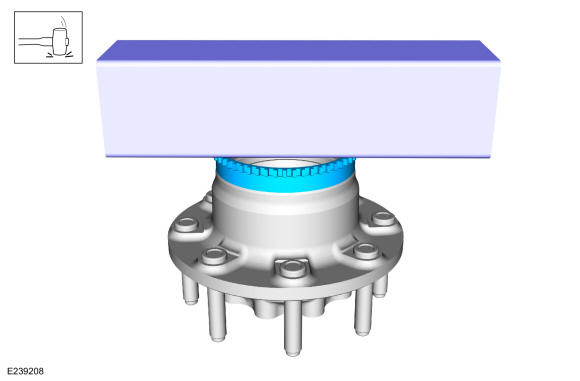

- Using a mallet and a wooden block, install the ring by gently and evenly tapping the wood block.
Use the General Equipment: Plastic Mallet
Use the General Equipment: Wooden Block
- Install the wheel hub. Refer to: Wheel Hub - Full Floating Axle - Vehicles With: Dana M275/Dana M300 . Refer to: Wheel Hub - Full Floating Axle - Vehicles With: Ford 10.5 Inch Ring Gear .
