Rear Wheel Speed Sensor - Vehicles With: Dual Rear Wheels: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Typical RH wheel speed sensor shown in illustration.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

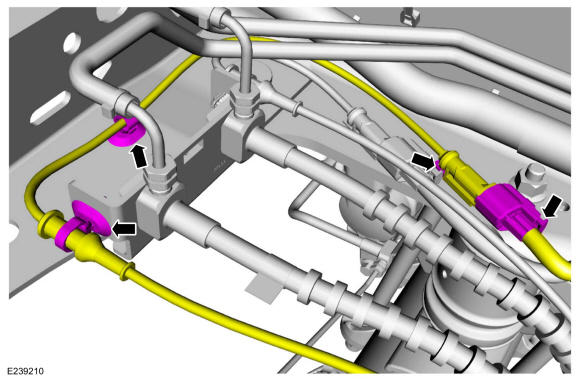

- Disconnect the electrical connector and detach the harness retainers

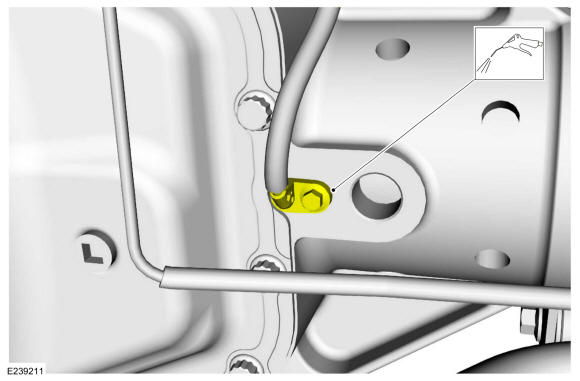

- Using compressed air, clean the area surrounding the wheel speed sensor.

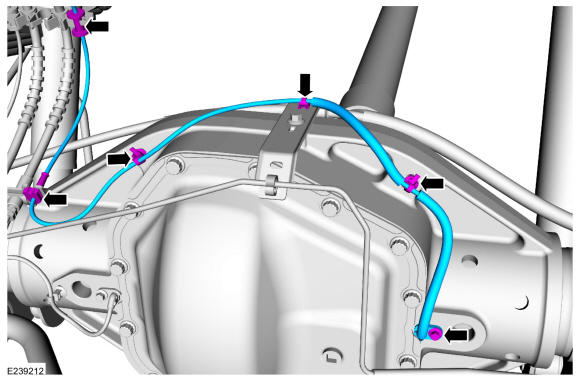

- Detach the harness retainers, remove the bolt and the wheel speed sensor.
Speed Sensor Torque (Dual Rear Wheel): 80 lb.in (9 Nm)
