Tailgate Molding: Removal

All vehicles

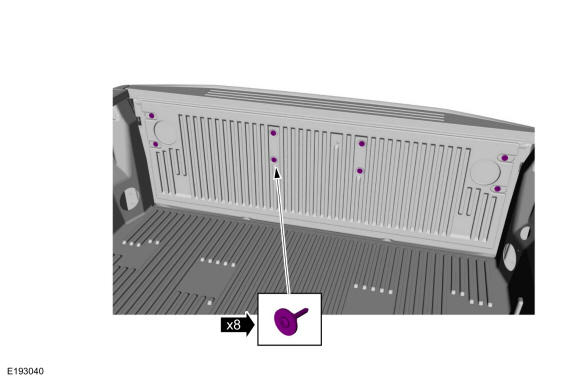

1. Remove the screws from the tailgate liner.

   Torque: 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

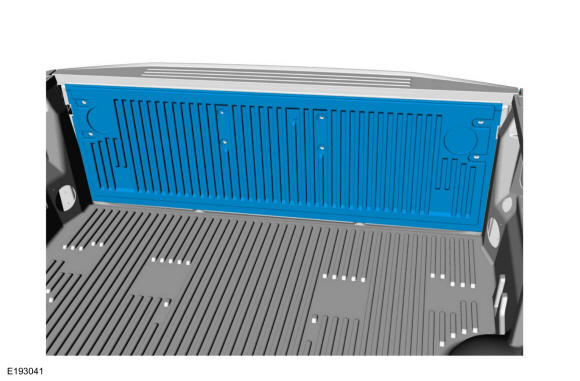

2. Remove the tailgate liner.

   Courtesy of FORD MOTOR COMPANY

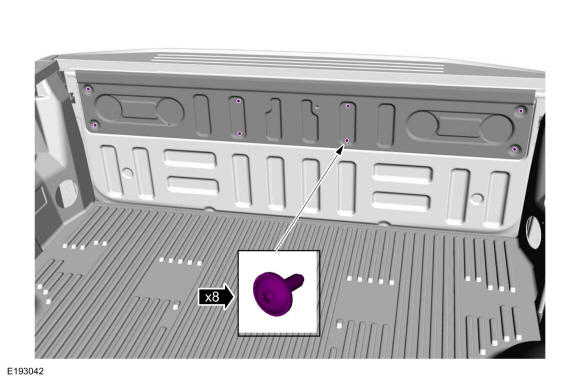

3. Remove the screws from the inner panel.

   Torque: 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

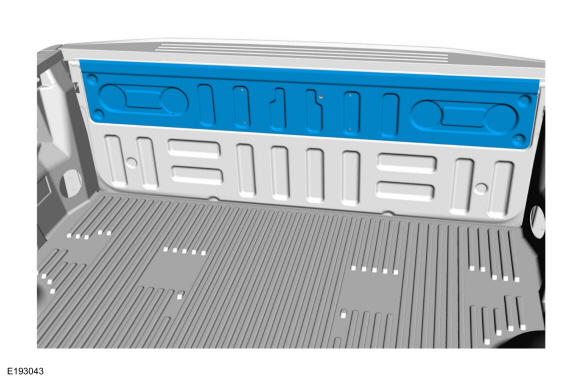

4. Remove the inner panel.

   Courtesy of FORD MOTOR COMPANY

   Vehicles without Flexible Step

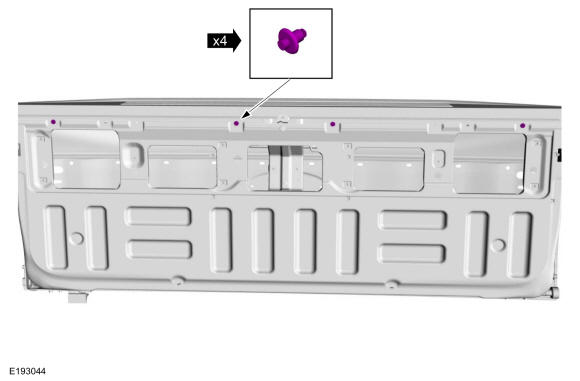

5. Remove the push pin retainers.

   Courtesy of FORD MOTOR COMPANY

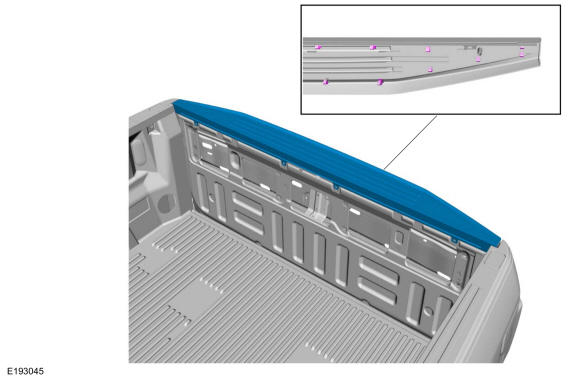

6. Using a non-marring trim tool, disengage the retainers from the tailgate and remove the molding.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with Flexible Step

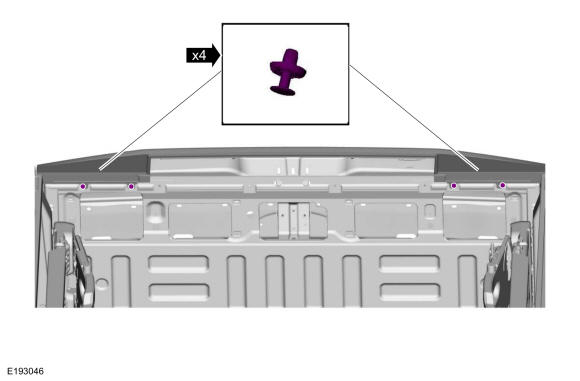

7. Remove the push pin retainers.

   Courtesy of FORD MOTOR COMPANY

8. Using a non-marring trim tool, disengage the retainers from the tailgate and remove the molding.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with Tailgate Applique

9. Remove the retainer nuts and washers.

   Torque: 36 lb.in (4.1 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Platinum tailgate applique shown, all others similar.
    NOTE: Use care when disengaging push pins from tailgate to avoid damage to the applique.

    Using a non-marring trim tool, disengage the push pin retainers from the tailgate and remove the applique.

Courtesy of FORD MOTOR COMPANY
