Running Board Control Module (RBM): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

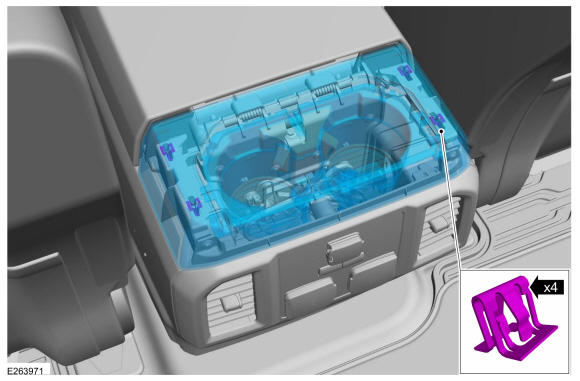

Release the clips and remove the rear cup holder. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

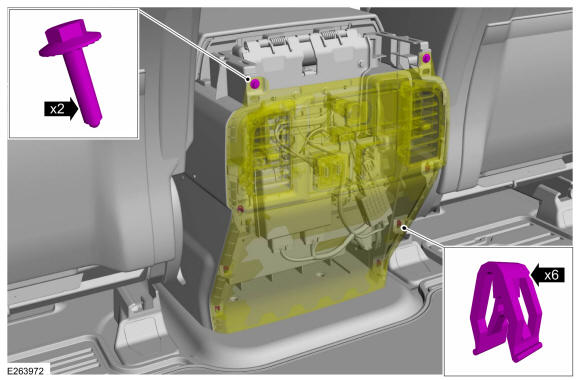

Remove the screws, release the clips and position the floor console rear trim panel out. Use the General Equipment: Interior Trim Remover
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

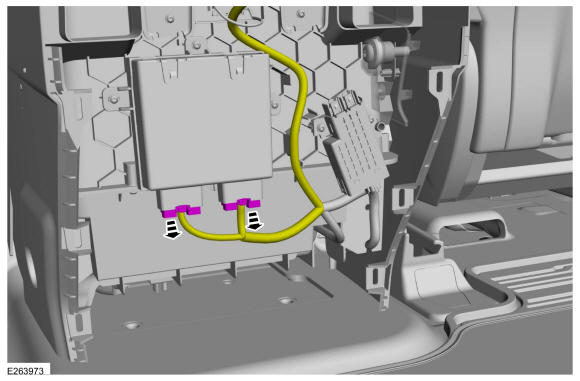

Disconnect the PRB module electrical connectors.

Courtesy of FORD MOTOR COMPANY

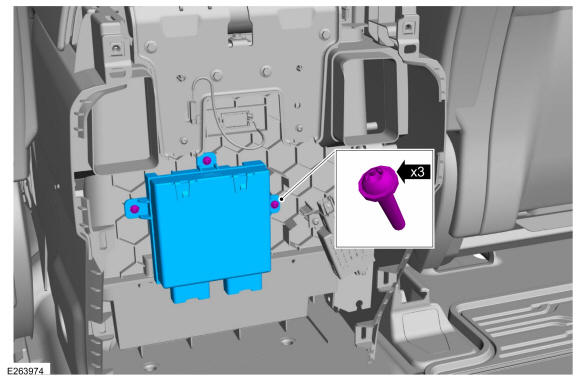

Remove the screws and the PRB module.

Courtesy of FORD MOTOR COMPANY
