Roof Molding: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the following items:

    1. Remove the back glass. Refer to: Fixed Glass .

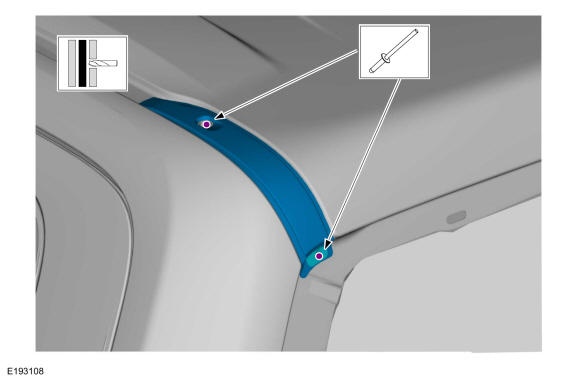

  2. Drill out the rivets and remove the molding.
GFD466438Courtesy of FORD MOTOR COMPANY
