Rear Quarter Panel Molding: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may include installation details.

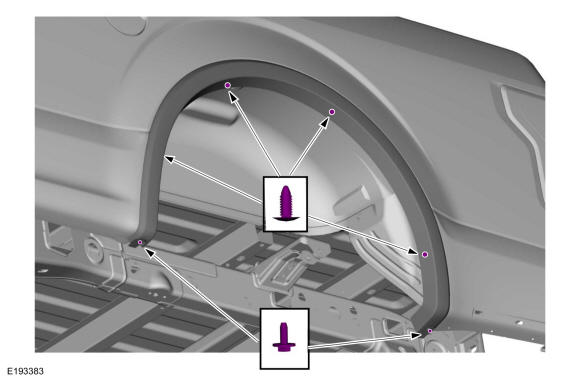

- Remove the 4 push pins and 2 screws.
Torque: 71 lb.in (8.0 Nm)
 Courtesy of FORD MOTOR COMPANY
|

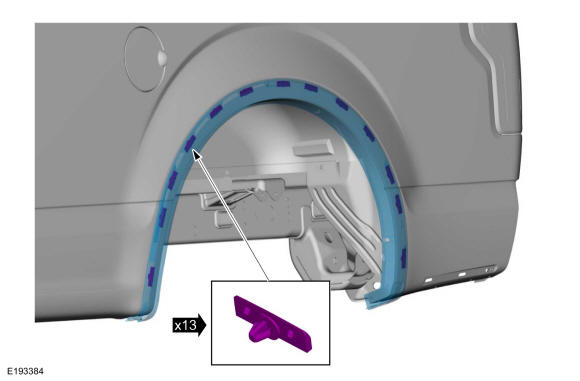

- Using a non-marring trim tool, detach the 13 retainers and remove the molding.
 Courtesy of FORD MOTOR COMPANY
|
