Front Fender Molding: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

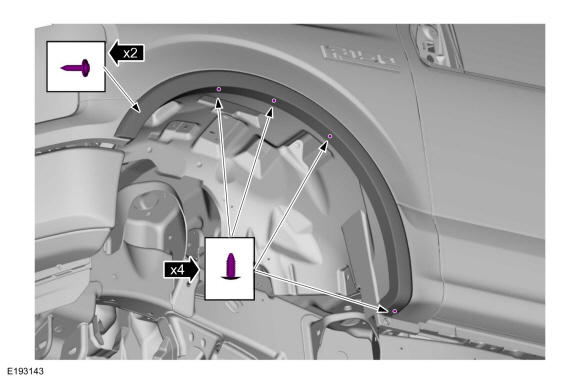

- Remove the push pins and the screws.
Torque: 9 lb.in (1.0 Nm)
 Courtesy of FORD MOTOR COMPANY
|

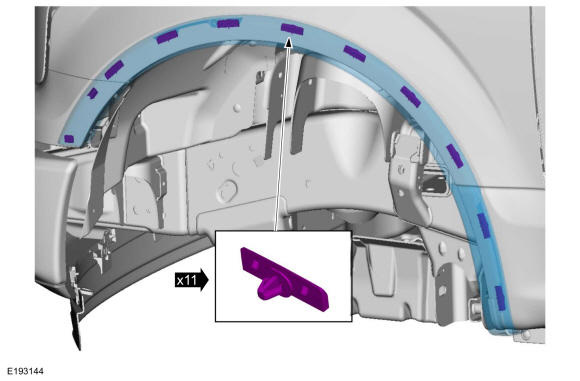

- Using a non-marring trim tool, disengage the push pin retainers from the fender and remove the molding.
 Courtesy of FORD MOTOR COMPANY
|
