Rear Window Glass Sliding Panel: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .
Position the rear window glass sliding panel as shown.

Courtesy of FORD MOTOR COMPANY
Remove the rear window glass sliding panel left stop screw.

Courtesy of FORD MOTOR COMPANY
Remove the rear window glass sliding panel right stop screw.

Courtesy of FORD MOTOR COMPANY

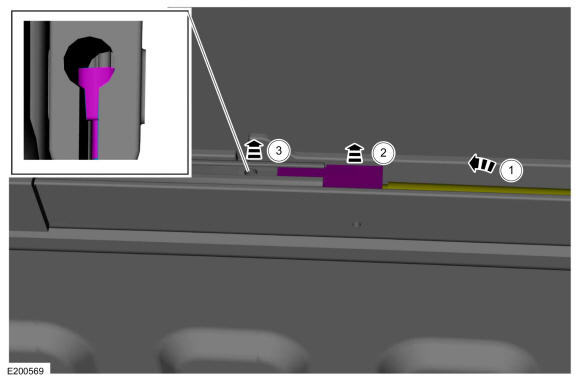

Detach the rear window glass sliding panel left stop and cable.
1. Pull the left cable to remove the stop from the rear window glass sliding rail.
2. Detach the left window rail stop from the rear window glass sliding rail.
3. Remove the cable end from the rear window glass sliding panel.
Courtesy of FORD MOTOR COMPANY
Position the rear window glass sliding panel to release the tension on the right cable.
Dimension

: 0.5000 in (12.7 mm)

Courtesy of FORD MOTOR COMPANY
Detach the rear window glass sliding panel right stop and cable.
1. Lift the right cable to remove the stop from the rear window glass sliding rail.
2. Detach the right window rail stop from the rear window glass sliding rail.
Courtesy of FORD MOTOR COMPANY

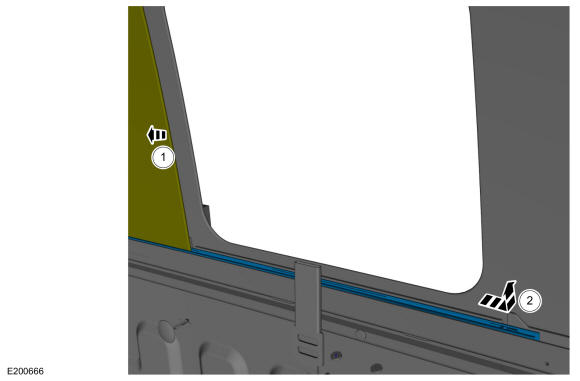

Remove the rear window glass sliding panel carrier guide.
1. Position the rear window glass sliding panel to full open.
2. Using long nose pliers, remove the rear window glass sliding panel carrier guide. Use the General Equipment: Long Nose Pliers
Courtesy of FORD MOTOR COMPANY

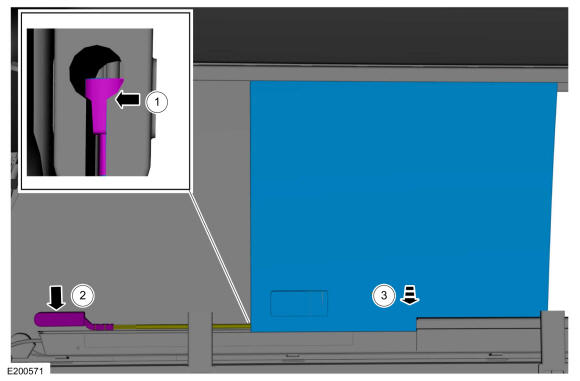

Remove the rear window glass sliding panel.
1. Remove the cable end from the rear window glass sliding panel.
2. NOTE: Pry at the center of the snap tab to prevent damage to the solder terminals.

  Disconnect the electrical snap tab from the right side rear window glass.
3. Remove the rear window glass sliding panel.

Courtesy of FORD MOTOR COMPANY
