Rear Door Window Glass - SuperCrew: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: LH side shown, RH side similar.

Remove the rear door upper molding. Refer to: Rear Door Upper Molding .
Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCrew .

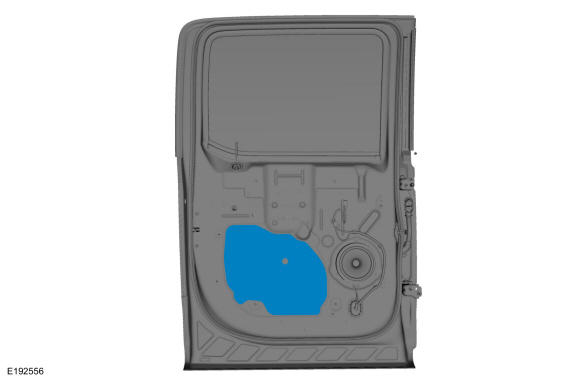

Remove the watershield.

Courtesy of FORD MOTOR COMPANY

Vehicles with manual windows
Lower the rear door window glass.
1. Install the rear door window glass handle.
2. Lower the rear door window glass.
Courtesy of FORD MOTOR COMPANY

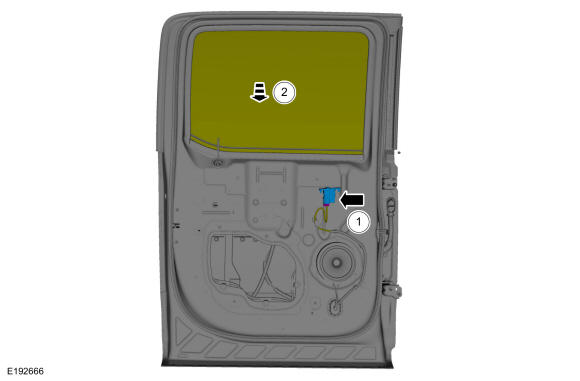

Vehicles with power windows
Remove the rear door window control switch Refer to: Rear Door Window Control Switch - SuperCrew, Vehicles With: Rear Power Windows .
Lower the rear door window glass.
1. Install the rear door window control switch.
2. Lower the rear door window glass.
Courtesy of FORD MOTOR COMPANY

All vehicles

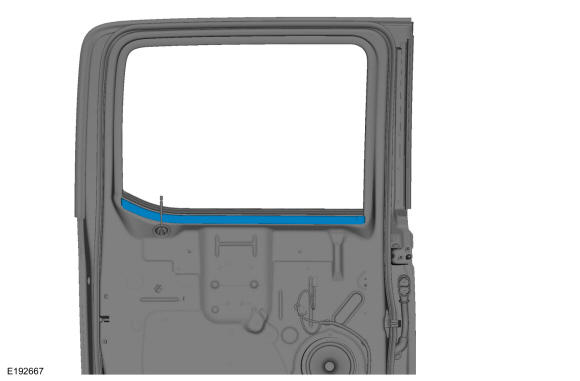

Remove the inner belt molding.

Courtesy of FORD MOTOR COMPANY

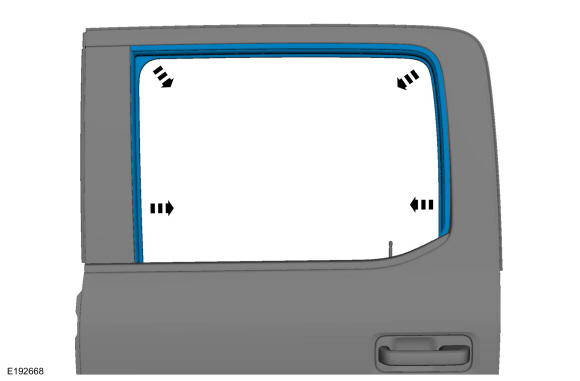

Remove the rear door glass top run.

Courtesy of FORD MOTOR COMPANY

Vehicles with manual windows
Release the clips from rear door window glass.

Courtesy of FORD MOTOR COMPANY

Vehicles with power windows
Release the clips from rear door window glass.

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the rear door glass.

Courtesy of FORD MOTOR COMPANY
