Rear Door Window Glass - SuperCab, Vehicles With: Rear Power Windows: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door window control switch. Refer to: Rear Door Window Control Switch - SuperCab, Vehicles With: Rear Power Windows .

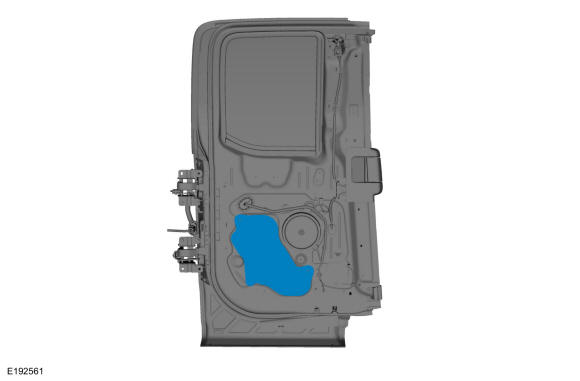

Remove the watershield.

Courtesy of FORD MOTOR COMPANY
Remove the aft rear door glass run and bracket.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: For non-functional rear door window regulators and motors with the window in the 40 mm open to full closed position, cut the rear door window regulator cables to allow window movement.

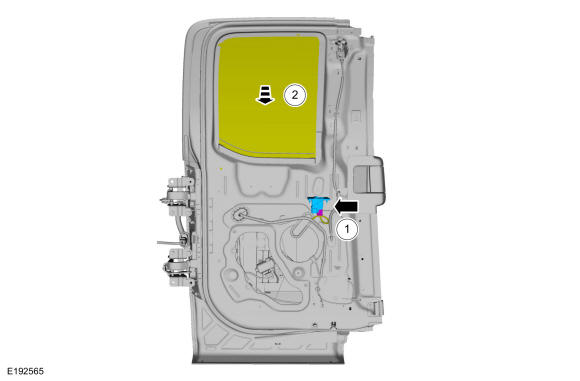

Lower the rear door window glass.
1. Connect the rear door window control switch.
2. Lower the rear door window glass.
Courtesy of FORD MOTOR COMPANY
Remove the inner belt molding.

Courtesy of FORD MOTOR COMPANY
Remove the rear door upper molding. Refer to: Rear Door Upper Molding .
Remove the rear door glass top run.

Courtesy of FORD MOTOR COMPANY

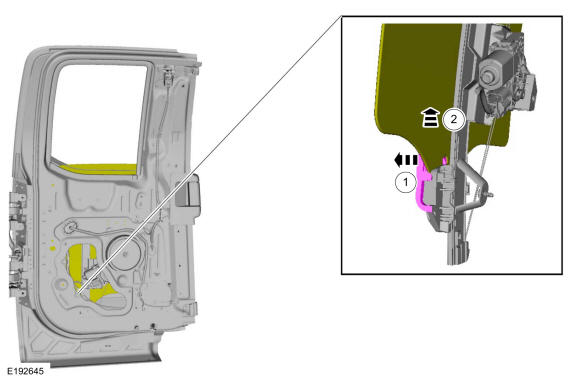

Release the rear door window glass.
1. Pry out the rear door window glass clip.
2. Release the rear door window glass.
Courtesy of FORD MOTOR COMPANY
Remove the rear door window glass.

Courtesy of FORD MOTOR COMPANY
